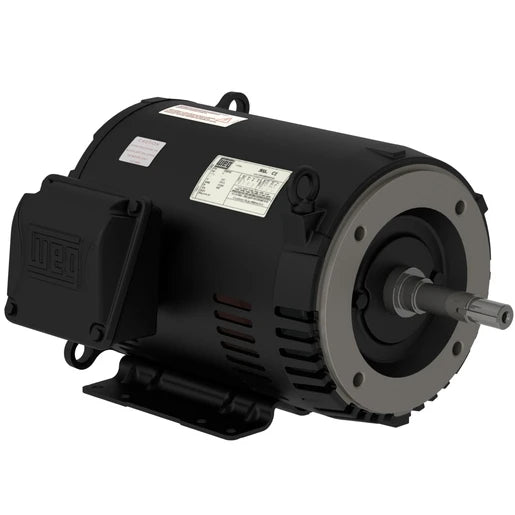

01036OT3E213JM-S WEG Motor (10 HP 2P 213/5JM 3Ph 230/460)
01036OT3E213JM-S WEG Motor (10 HP 2P 213/5JM 3Ph 230/460)
SKU:01036OT3E213JM-S
Precio habitual
$939.36 USD
Precio habitual
$1,289.00 USD
Precio de oferta
$939.36 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
Don't see the price?
Don't see the price?
If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.
No se pudo cargar la disponibilidad de retiro
01036OT3E213JM-S WEG Motor (10 HP 2P 213/5JM 3Ph 230/460)
| Frame | 213/5JM |
|---|---|
| Output | 10 HP (7.5 kW) |
| Number of Poles | 2 |
| Frequency | 60 Hz |
| Rated speed | 3535 rpm |
| Slip | 1.81 % |
| Rated voltage | 230/460 V |
| Rated current | 24.0/12.0 A |
| L. R. Amperes | 163/81.6 A |
| LRC | 6.8x(Code H) |
| No load current | 9.32/4.66 A |
| Rated torque | 14.9 ft.lb |
| Locked rotor torque | 200 % |
| Breakdown torque | 280 % |
| Locked rotor time | 19s (cold) 11s (hot) |
