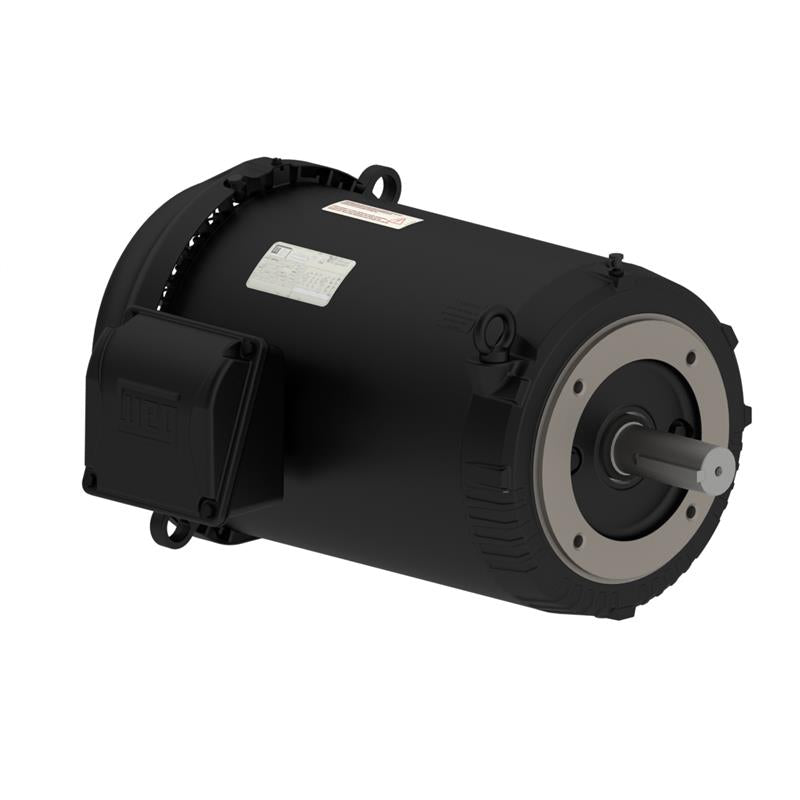

01036ET3ER215TC-S WEG Motor (10 HP, 3600 RPM, 3 Phase, 60 Hz, 213/5TC Frame, 230/460V, TEFC, Footless)

01036ET3ER215TC-S WEG Motor (10 HP, 3600 RPM, 3 Phase, 60 Hz, 213/5TC Frame, 230/460V, TEFC, Footless)

[COUNT] shoppers are looking at this right now

01036ET3ER215TC-S

$1,072.45 USD
$1,205.00 USD $1,072.45 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

WEG 01036ET3ER215TC-S, 10 HP, 3600 RPM, 3 Phase, 60 Hz, 213/5TC Frame, 230/460V, TEFC, Footless

Applications
General Purpose Motor
Features
New ventilation system for improved thermal performance
Color coded/numbered leads as standard for easy wiring
Bearing cap as standard on flanged motors, optional on non-flanged
IP55 Ingress Protection as standard, being appropriate for severe environments
Motor frame painting system resistant to a minimum of 500 hours ASTM B117 salt spray test
Suitable for VFD operation as per NEMA MG1 part 31.4.4.2
Aluminum endshields and flange
Internal bolts, giving a clean surface to the motor, avoiding trapping materials and allowing easy paint job after assembly to the load, if required
Double shielded ball bearings

Specifications

Brand
WEG
Catalog Number
01036ET3ER215TC-S
Type
General Purpose Motor
HP
10
RPM
3600
Phase
3
Frequency
60 Hz
Frame
213/5TC
Voltage
230/460
Enclosure
TEFC
Mounting
Footless
FL Efficiency
90.2
FL Amps
11.5
Construction
Rolled Steel
Service Factor
1.15
"C" Dimensions
21.654
Drive End Flange Type
C-Face
Warranty
1 Year
