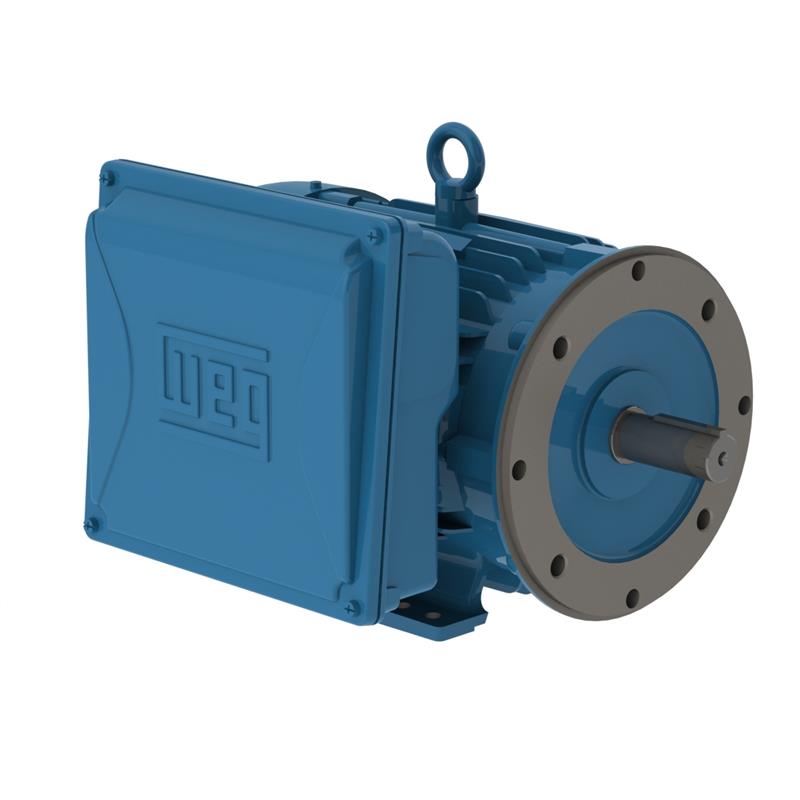

01036ES1E215TC-W22 WEG General Purpose C-Face Motor (10 HP, 1PH, 208-230/460V)
01036ES1E215TC-W22 WEG General Purpose C-Face Motor (10 HP, 1PH, 208-230/460V)
SKU:01036ES1E215TC-W22
Precio habitual
$1,435.63 USD
Precio habitual
$1,970.00 USD
Precio de oferta
$1,435.63 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
Don't see the price?
Don't see the price?
If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.
No se pudo cargar la disponibilidad de retiro
WEG 01036ES1E215TC-W22, General Purpose C-Face Motor, 10 HP, 3600 RPM, 1 Phase, 60 Hz, 215TC Frame, Foot-mounted, TEFC, 208-230/460V, Cast Iron
| Applications | |
| High Starting Torque makes these motors ideal for a wide range of applications. | |
| Features | |
| High Starting Torque | |
| 182T frames and up are cast iron for severe duty | |
| NPT Threaded Holes in Terminal Box | |
| Class F insulation | |
| V-ring Seals | |
| Class F insulation | |
|
Specifications |
|
|
Brand
|
WEG
|
|
Catalog Number
|
01036ES1E215TC-W22
|
|
Type
|
General Purpose C-Face Motor
|
|
Series
|
Single Phase Motor
|
|
HP
|
10
|
|
RPM
|
3600
|
|
Phase
|
1
|
|
Hertz
|
60
|
|
Frame
|
215TC
|
|
Mounting
|
Foot-mounted
|
|
Enclosure
|
TEFC
|
|
Voltage
|
208-230/460
|
|
Full Load Amps
|
19.4
|
|
Full Load Efficiency
|
86
|
|
Frame Material
|
Cast Iron
|
|
Warranty
|
1 Year
|
|
