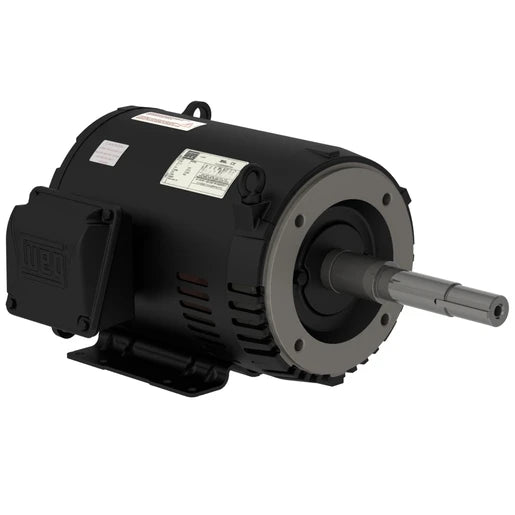

01018OT3E215JP-S WEG Pump Motor (ROLLED STEEL, NEMA Premium Efficiency, 10 HP, 4P, 213/5JP, 3Ph, 230/460//190-220/380-415 V, 60 Hz, IC01 - ODP - Foot-mounted)

01018OT3E215JP-S WEG Pump Motor (ROLLED STEEL, NEMA Premium Efficiency, 10 HP, 4P, 213/5JP, 3Ph, 230/460//190-220/380-415 V, 60 Hz, IC01 - ODP - Foot-mounted)

👁️ [COUNT] People are currently viewing this product.

01018OT3E215JP-S

$1,215.74 USD
$1,366.00 USD $1,215.74 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

If you are unable to find the price for this item on our page, please contact us directly for a quote.

Some products require you to ADD TO CART to see the price.

Tax

NY, NJ and CT will be charged tax on most orders.

Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.

* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.

** Taxes may be applied after an order is placed.

01018OT3E215JP-S WEG Pump Motor (ROLLED STEEL, NEMA Premium Efficiency, 10 HP, 4P, 213/5JP, 3Ph, 230/460//190-220/380-415 V, 60 Hz, IC01 - ODP - Foot-mounted)

Frame 213/5JP
Output 10 HP (7.5 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1770 rpm
Slip 1.67 %
Rated voltage 230/460 V
Rated current 24.8/12.4 A
L. R. Amperes 174/86.8 A
LRC 7.0x(Code H)
No load current 12.0/5.99 A
Rated torque 29.7 ft.lb
Locked rotor torque 250 %
Breakdown torque 350 %
Locked rotor time 25s (cold) 14s (hot)
  • Questions about this product? Contact our team!
  • This item is direct shipped from the manufacturer. Lead times will vary. Contact for availability.
  • ALL IMAGES SHOWN ON OUR WEBSITE ARE FOR ILLUSTRATION PURPOSE ONLY AND MAY NOT BE AN EXACT REPRESENTATION OF THE PRODUCT. ACTUAL PRODUCTS MAY VARY FROM THE IMAGES SHOWN.
