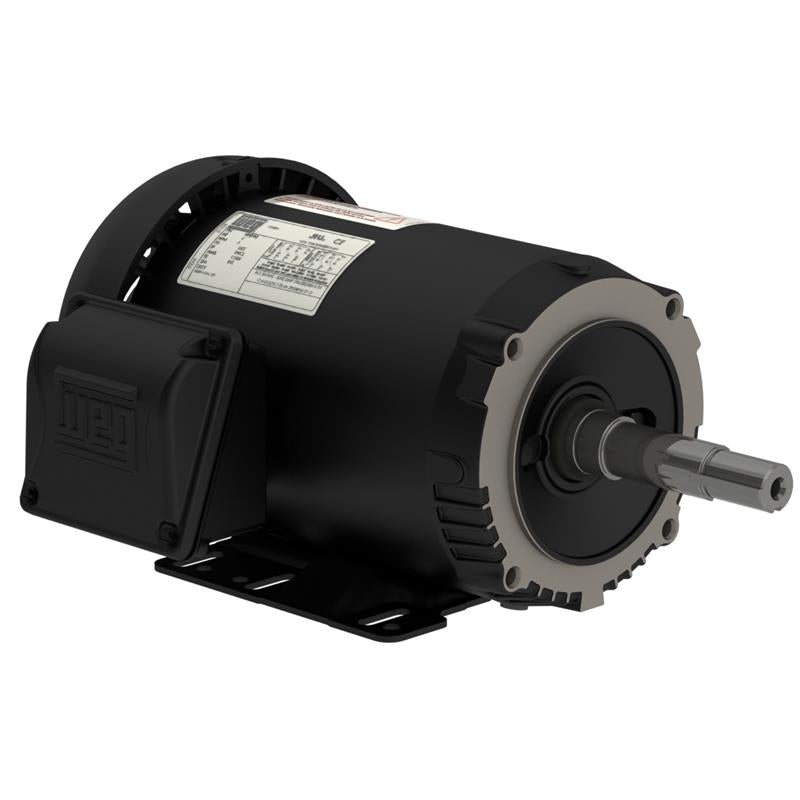

01018ET3V215JM-S WEG Close Coupled Pump Motor (10 HP, 3 Phase, 200/400 Voltage, TEFC Enclosure, 1800 RPM, 213/5JM Frame)

01018ET3V215JM-S WEG Close Coupled Pump Motor (10 HP, 3 Phase, 200/400 Voltage, TEFC Enclosure, 1800 RPM, 213/5JM Frame)

01018ET3V215JM-S

$1,305.93 USD
$1,305.93 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

WEG 01018ET3V215JM-S, Close-Coupled Pump Motors Type, 10 HP, 3 Phase, 200/400 Voltage, TEFC Enclosure, 1800 RPM, 213/5JM Frame,

Applications
High performance with maximum energy efficiency, this is the meaning of the new WEG electric motor. High efficiency and Low cost of Ownership throughout the entire motor lifetime have been the basis for the W22 development. A design created to anticipate concepts on performance and energy savings.
Features
Class F insulation (Impregnation Resin and Magnet wire are class H)
Regreasable ball bearings (Frames 254JM/JP and up)
Gasketed conduit box
Optimized ventilation system for cooler operation and reduced noise levels
Solid base for reduced vibration levels

Specifications

Brand
WEG
Catalog Number
01018ET3V215JM-S
Type
Close-Coupled Pump Motors
HP
10
Phase
3
Voltage
200/400
Enclosure
TEFC
RPM
1800
Service Factor
1 .15
Frame
213/5JM
FL Amps @ High
14 .0
FL. Eff (%)
91 .7
C Dimension (in)
20 .433
Notes
See Support Documents
