WEG

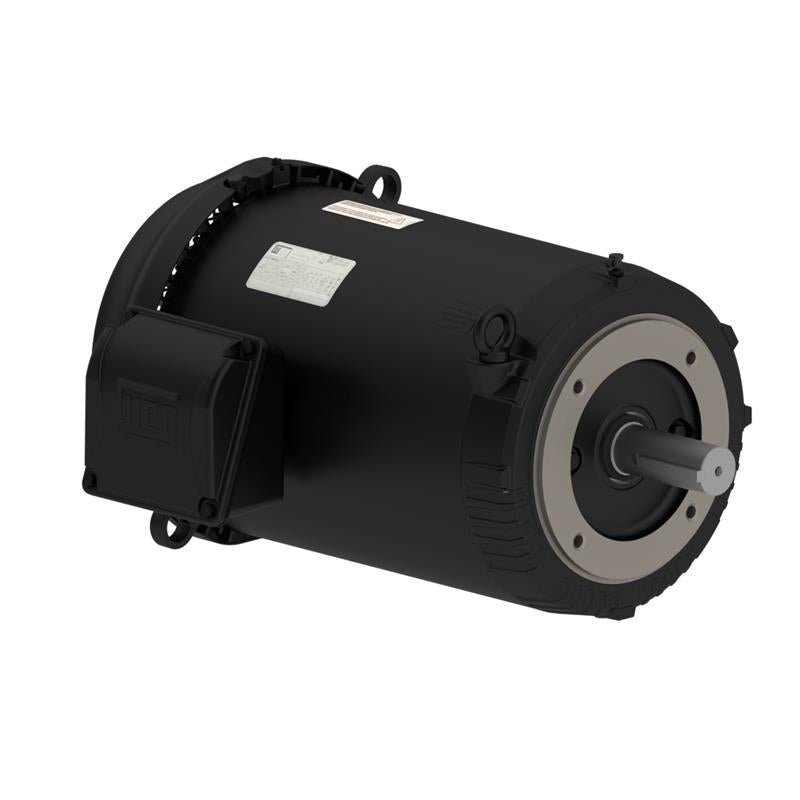

01018ET3ER215TC-S WEG Motor (10 HP, 1800 RPM, 3 Phase, 60 Hz, 213/5TC Frame, 230/460V, TEFC, Footless)

Name: 01018ET3ER215TC-S WEG Motor (10 HP, 1800 RPM, 3 Phase, 60 Hz, 213/5TC Frame, 230/460V, TEFC, Footless)
Brand: WEG
SKU: 01018ET3ER215TC-S
Price: 840.98 USD
Availability: InStock

SKU:01018ET3ER215TC-S

$840.98 USD

Oferta Agotado

Los gastos de envío se calculan en la pantalla de pago.

Cantidad

Don't see the price?

If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.

WEG 01018ET3ER215TC-S, 10 HP, 1800 RPM, 3 Phase, 60 Hz, 213/5TC Frame, 230/460V, TEFC, Footless

Applications
General Purpose Motor

Features
New ventilation system for improved thermal performance
Color coded/numbered leads as standard for easy wiring
Bearing cap as standard on flanged motors, optional on non-flanged
IP55 Ingress Protection as standard, being appropriate for severe environments
Motor frame painting system resistant to a minimum of 500 hours ASTM B117 salt spray test
Suitable for VFD operation as per NEMA MG1 part 31.4.4.2
Aluminum endshields and flange
Internal bolts, giving a clean surface to the motor, avoiding trapping materials and allowing easy paint job after assembly to the load, if required
Double shielded ball bearings

Specifications
Brand	WEG
Catalog Number	01018ET3ER215TC-S
Type	General Purpose Motor
HP	10
RPM	1800
Phase	3
Frequency	60 Hz
Frame	213/5TC
Voltage	230/460
Enclosure	TEFC
Mounting	Footless
FL Efficiency	91.7
FL Amps	12.2
Construction	Rolled Steel
"C" Dimensions	19.291
Drive End Flange Type	C-Face
Warranty	1 Year

Support Documents (pdf)
Features

Questions about this product? Contact our team!
Product images may be generic.

Ver todos los detalles
