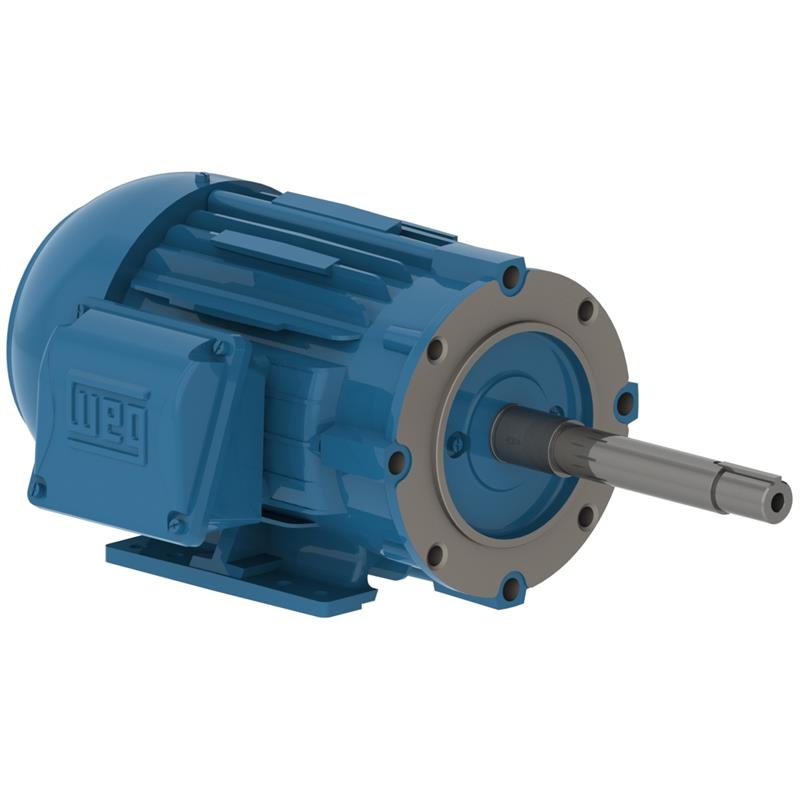

01018ET3E215JP-W22 WEG Motor, Close Coupled Pump (10 HP, 215JP FRAME, 460 V, THREE PHASE, TEFC , 1760 RPM)
01018ET3E215JP-W22 WEG Motor, Close Coupled Pump (10 HP, 215JP FRAME, 460 V, THREE PHASE, TEFC , 1760 RPM)
No reviews
SKU:01018ET3E215JP-W22
Precio habitual
$1,328.51 USD
Precio habitual
Precio de oferta
$1,328.51 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
No se pudo cargar la disponibilidad de retiro
WEG Motor 01018ET3E215JP-W22, 10 HP, RPM: 1760, FRAME: 215JP, 460 V, THREE PHASE: 60 Hz, : TEFC, WEG Close Coupled Pump Motor
| Applications |
| Specially developed line for industrial and commercial pumping applications, such as Water pumping, Process, and Transfer and circulating pumps |
| Features |
| Close Coupled Pump Motors, 3-Phase, Cast Iron, NEMA Premium, TEFC, JM & JP |
Tech Specs | |
Brand |
WEG Motors |
Model Number |
01018ET3E215JP-W22 |
HP |
10 HP |
RPM |
1760 |
FRAME |
215JP |
VOLTAGE |
460 V |
PHASE |
THREE |
FREQUENCY |
60 Hz |
ENCLOSURE |
TEFC |
APPROXIMATE WEIGHT (lb) |
172 |
FEET |
YES |
TERMINAL BOX |
LEFT |
FLANGE |
FC-184 |
RATED CURRENT |
12.4 A |
LOCKED ROTOR CURRENT IL IN |
6.4 |
LOCKED ROTOR CURRENT |
79.4 A |
LOCKED ROTOR TORQUE |
2 |
BREAKDOWN TORQUE |
3 |
EFFICIENCY 50 |
90.2 |
EFFICIENCY 75 |
91.7 |
EFFICIENCY 100 |
91.7 |
POWER FACTOR 50 |
0.66 |
POWER FACTOR 75 |
0.77 |
POWER FACTOR 100 |
0.83 |
SERVICE FACTOR |
1.25 |
INERTIA KGM2 |
0.06365 kgm |
INERTIA SQ FT LB |
1.5104 sq.ft. |
LOCKED ROTOR TIME |
17 s |
NOISE LEVEL |
58 dB(A) |
ALTITUDE |
1000 |
DUTY CYCLE |
S1 |
AMBIENT TEMPERATURE |
-20C - +40C |
DEGREE OF PROTECTION |
IP55 |
NO-LOAD CURRENT |
5.65 A |
INSULATION CLASS |
F |
FULL LOAD TORQUE NM |
39.9 Nm |
FULL LOAD TORQUE LB FT |
29.4 .ft |
SLIP |
0.0222 |
DESIGN |
B |
TEMPERATURE RISE |
80 K |
BEARINGS D E |
6309 Z-C3 |
BEARINGS N D E |
6207 ZZ |
REGREASING INTERVAL D E |
20000 h |
REGREASING INTERVAL N D E |
- |
GREASE AMOUNT D E |
13 g |
GREASE AMOUNT N D E |
- |
