WEG

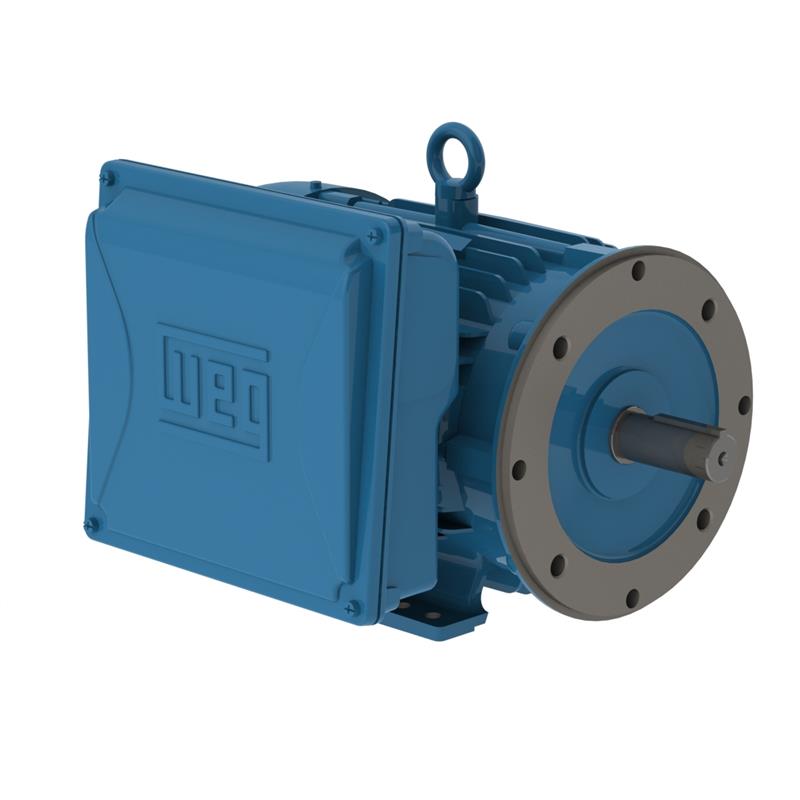

01018ES1E215TC-W22 WEG General Purpose C-Face Motor (10 HP, 1800 RPM, 1 Phase, 60 Hz, 215TC Frame, Foot-mounted, TEFC, 208-230/460V)
01018ES1E215TC-W22 WEG General Purpose C-Face Motor (10 HP, 1800 RPM, 1 Phase, 60 Hz, 215TC Frame, Foot-mounted, TEFC, 208-230/460V)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:01018ES1E215TC-W22
Precio habitual
$1,453.37 USD
Precio habitual
$1,633.00 USD
Precio de oferta
$1,453.37 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.
* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.
** Taxes may be applied after an order is placed.
WEG 01018ES1E215TC-W22, General Purpose C-Face Motor, 10 HP, 1800 RPM, 1 Phase, 60 Hz, 215TC Frame, Foot-mounted, TEFC, 208-230/460V, Cast Iron
| Applications | |
| High Starting Torque makes these motors ideal for a wide range of applications. | |
| Features | |
| High Starting Torque | |
| 182T frames and up are cast iron for severe duty | |
| NPT Threaded Holes in Terminal Box | |
| Class F insulation | |
| V-ring Seals | |
| Class F insulation | |
Specifications | |
Brand |
WEG |
Catalog Number |
01018ES1E215TC-W22 |
Type |
General Purpose C-Face Motor |
Series |
Single Phase Motor |
HP |
10 |
RPM |
1800 |
Phase |
1 |
Hertz |
60 |
Frame |
215TC |
Mounting |
Foot-mounted |
Enclosure |
TEFC |
Voltage |
208-230/460 |
Full Load Amps |
19.5 |
Full Load Efficiency |
84 |
Frame Material |
Cast Iron |
Warranty |
1 Year |
Support Documents (pdf) |
