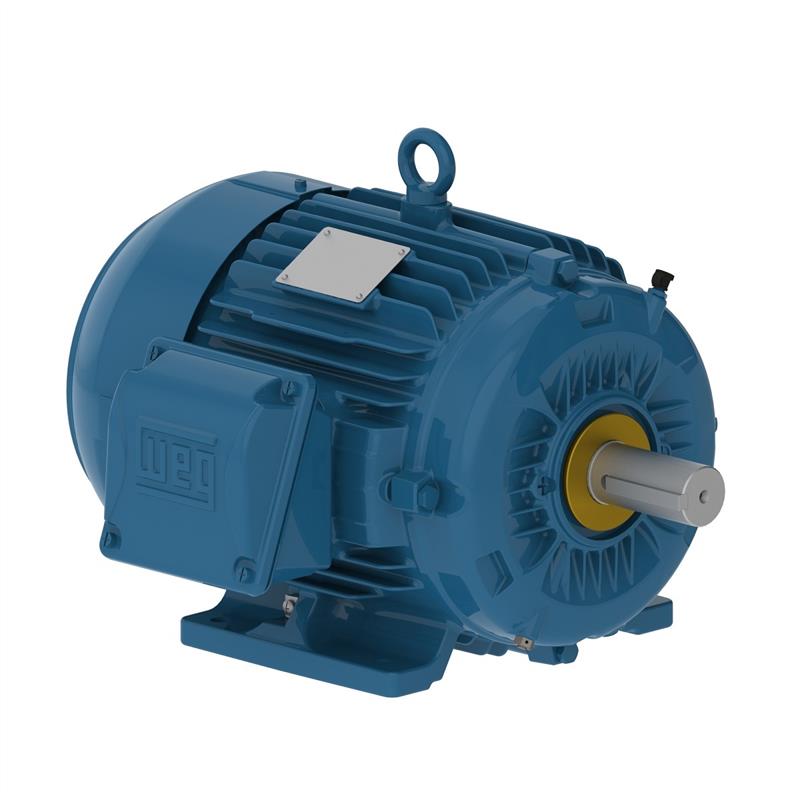

00736ST3HIE213T-W22 WEG Motor (7.5 HP, 213T FRAME, 575 V, THREE PHASE, TEFC , 3520 RPM)

WEG Motor 00736ST3HIE213T-W22, 7.5 HP, RPM: 3520, FRAME: 213T, 575 V, THREE PHASE: 60 Hz, : TEFC, WEG Motor

Applications

Pumping applications, Pulp and paper mills, ical, Other

Features

IEEE 841 Motors, 3-Phase, Cast Iron, NEMA Premium, TEFC

Tech Specs
Brand	WEG Motors
Model Number	00736ST3HIE213T-W22
HP	7.5 HP
RPM	3520
FRAME	213T
VOLTAGE	575 V
PHASE	THREE
FREQUENCY	60 Hz
ENCLOSURE	TEFC
APPROXIMATE WEIGHT LB	139
FEET	YES
TERMINAL BOX	LEFT
FLANGE	-
RATED CURRENT	7.01 A
LOCKED ROTOR CURRENT IL IN	7.2
LOCKED ROTOR CURRENT	50.5 A
LOCKED ROTOR TORQUE	2.1
BREAKDOWN TORQUE	3
EFFICIENCY 50	87.5
EFFICIENCY 75	89.5
EFFICIENCY 100	89.5
POWER FACTOR 50	0.75
POWER FACTOR 75	0.84
POWER FACTOR 100	0.88
SERVICE FACTOR	1.25
INERTIA KGM2	0.01966 kgm
INERTIA SQ FT LB	0.46653 sq.ft.
LOCKED ROTOR TIME	27 s
NOISE LEVEL	72 dB(A)
ALTITUDE	1000
DUTY CYCLE	S1
AMBIENT TEMPERATURE	-20C - +40C
DEGREE OF PROTECTION	IP55
NO-LOAD CURRENT	2.64 A
INSULATION CLASS	F
FULL LOAD TORQUE NM	15.0 Nm
FULL LOAD TORQUE LB FT	11.0 .ft
SLIP	0.0222
DESIGN	B
TEMPERATURE RISE	80 K
BEARINGS D E	6308 C3
BEARINGS N D E	6207 C3
REGREASING INTERVAL D E	20000 h
REGREASING INTERVAL N D E	20000 h
GREASE AMOUNT D E	11 g
GREASE AMOUNT N D E	7 g
-	-
