00736OS1C184T-S WEG General Purpose Rolled Steel Motor (7.5 HP, 2 Pole, 182/4T Frame, 1 Phase, 208-230 Volt, 60 Hz, 3600 RPM, ODP Enclosure, Foot Mounted, F1 Mount)
00736OS1C184T-S WEG General Purpose Rolled Steel Motor (7.5 HP, 2 Pole, 182/4T Frame, 1 Phase, 208-230 Volt, 60 Hz, 3600 RPM, ODP Enclosure, Foot Mounted, F1 Mount)
[COUNT] shoppers are looking at this right now
No reviews
SKU:00736OS1C184T-S
Precio habitual
$855.29 USD
Precio habitual
$961.00 USD
Precio de oferta
$855.29 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro

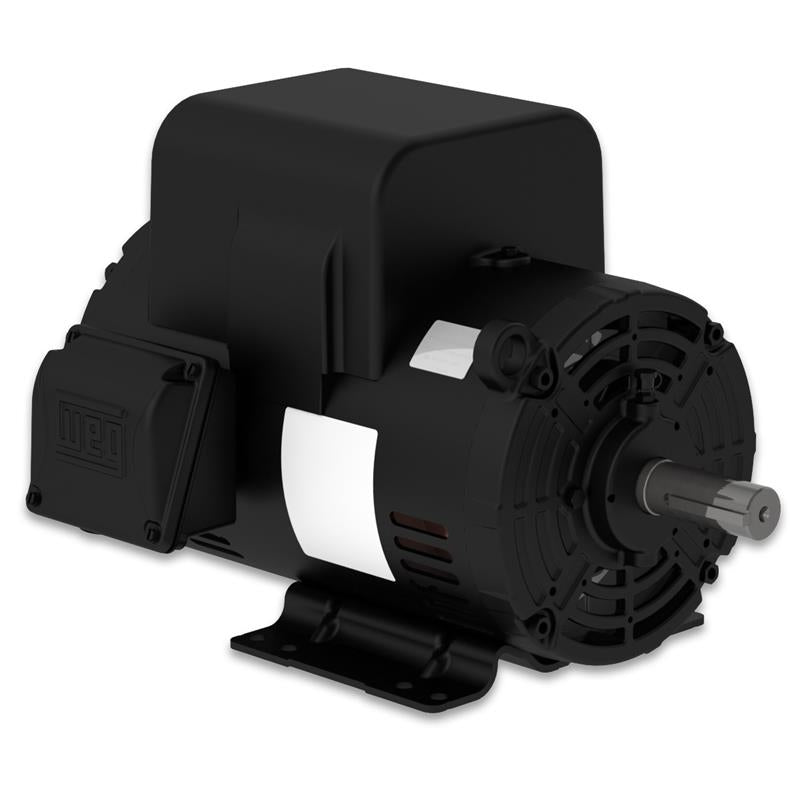

00736OS1C184T-S WEG Motor (Rolled Steel 7.5 HP 2P 182/4T 1Ph 208-230V)
| Frame | 182/4T |
|---|---|
| Output | 7.5 HP (5.5 kW) |
| Number of Poles | 2 |
| Frequency | 60 Hz |
| Rated speed | 3500 rpm |
| Slip | 2.78 % |
| Rated voltage | 208-230 V |
| Rated current | 31.8-28.5 A |
| L. R. Amperes | 219-197 A |
| LRC | 6.9x(Code G) |
| No load current | 4.14-4.80 A |
| Rated torque | 11.3 ft.lb |
| Locked rotor torque | 280 % |
| Breakdown torque | 254 % |
