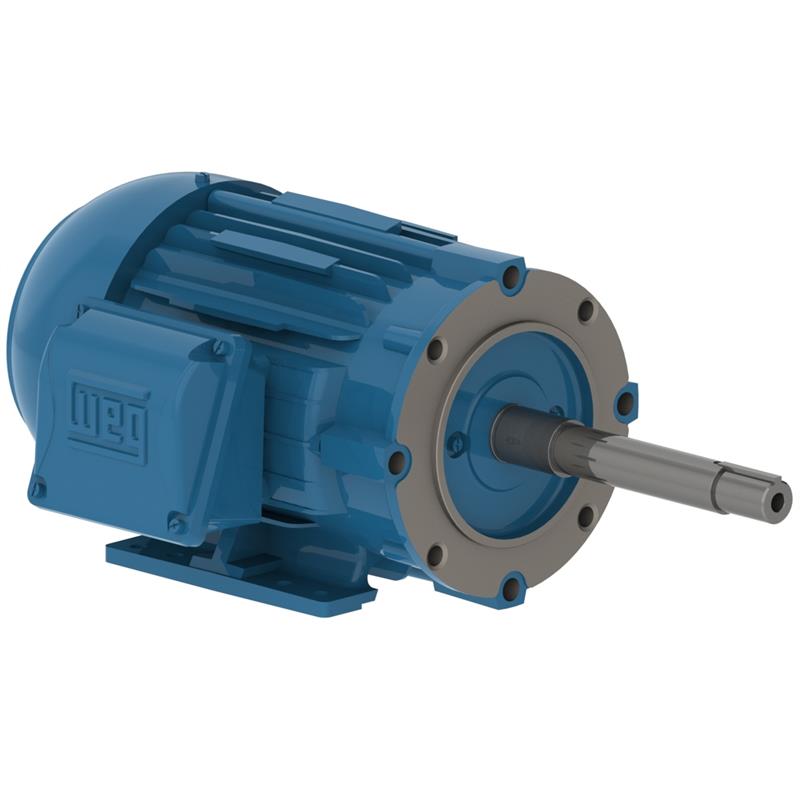

00718ET3H213JP-W22 WEG Motor, Close Coupled Pump Motor (7.5 HP, 213JP FRAME, 575 V, THREE PHASE, TEFC , 1765 RPM)

WEG Motor 00718ET3H213JP-W22, 7.5 HP, RPM: 1765, FRAME: 213JP, 575 V, THREE PHASE: 60 Hz, : TEFC, WEG Close Coupled Pump Motor

Applications

Specially developed line for industrial and commercial pumping applications, such as Water pumping, Process, and Transfer and circulating pumps

Features

Close Coupled Pump Motors, 3-Phase, Cast Iron, NEMA Premium, TEFC, JM & JP

Tech Specs
Brand	WEG Motors
Model Number	00718ET3H213JP-W22
HP	7.5 HP
RPM	1765
FRAME	213JP
VOLTAGE	575 V
PHASE	THREE
FREQUENCY	60 Hz
ENCLOSURE	TEFC
APPROXIMATE WEIGHT (lb)	154
FEET	YES
TERMINAL BOX	LEFT
FLANGE	FC-184
RATED CURRENT	7.20 A
LOCKED ROTOR CURRENT IL IN	7.1
LOCKED ROTOR CURRENT	51.1 A
LOCKED ROTOR TORQUE	2.2
BREAKDOWN TORQUE	3.1
EFFICIENCY 50	89.5
EFFICIENCY 75	91
EFFICIENCY 100	91.7
POWER FACTOR 50	0.67
POWER FACTOR 75	0.78
POWER FACTOR 100	0.84
SERVICE FACTOR	1.25
INERTIA KGM2	0.05662 kgm
INERTIA SQ FT LB	1.3436 sq.ft.
LOCKED ROTOR TIME	20 s
NOISE LEVEL	58 dB(A)
ALTITUDE	1000
DUTY CYCLE	S1
AMBIENT TEMPERATURE	-20C - +40C
DEGREE OF PROTECTION	IP55
NO-LOAD CURRENT	3.24 A
INSULATION CLASS	F
FULL LOAD TORQUE NM	29.8 Nm
FULL LOAD TORQUE LB FT	22.0 .ft
SLIP	0.0194
DESIGN	B
TEMPERATURE RISE	80 K
BEARINGS D E	6309 Z-C3
BEARINGS N D E	6207 ZZ
REGREASING INTERVAL D E	20000 h
REGREASING INTERVAL N D E	-
GREASE AMOUNT D E	13 g
GREASE AMOUNT N D E	-
