WEG

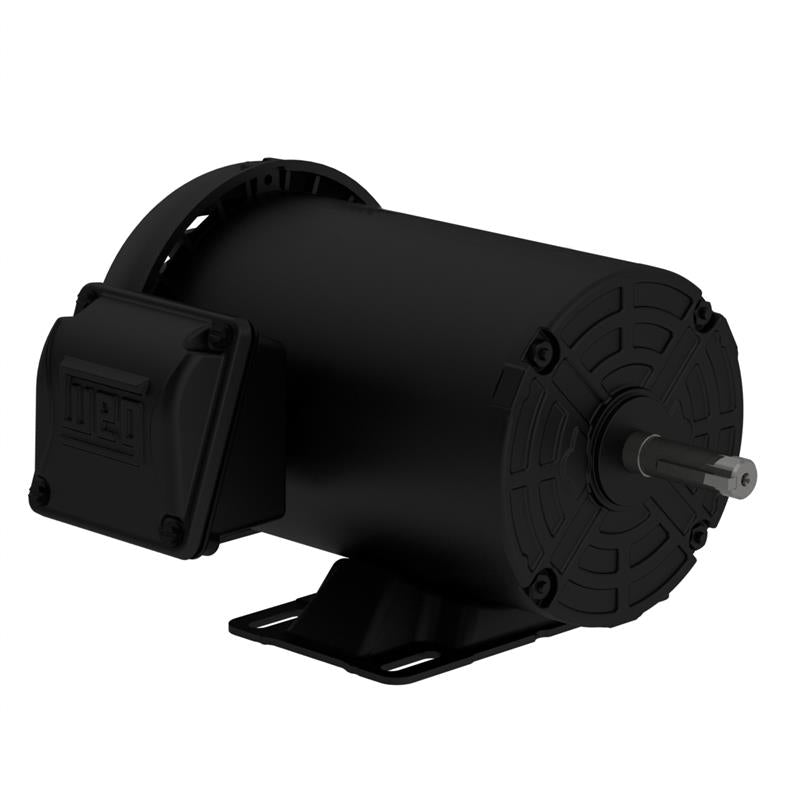

00718ET3E213T-S WEG Motor (7.5 HP, 1800 RPM, 3 Phase, 60 Hz, 213/5T Frame, TEFC, 230/460 V)
00718ET3E213T-S WEG Motor (7.5 HP, 1800 RPM, 3 Phase, 60 Hz, 213/5T Frame, TEFC, 230/460 V)
[COUNT] shoppers are looking at this right now
No reviews
SKU:00718ET3E213T-S
Precio habitual
$843.72 USD
Precio habitual
$948.00 USD
Precio de oferta
$843.72 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
WEG 00718ET3E213T-S, 7.5 HP, 1800 RPM, 3 Phase, 60 Hz, 213/5T Frame, Foot-mounted, TEFC, 230/460 V
| Applications | |
| General Application | |
| Features | |
| Rated Output: 0.25 to 25 HP | |
| Number of Poles: 2 to 6 | |
| Class F insulation | |
| Frame Sizes: NEMA 56 to 254/6T | |
| Frequency: 60 Hz (dual rated 50 Hz 190-220/380-415V) | |
| F1 mount as standard | |
| Aluminum endshields | |
| New ventilation system for improved thermal performance | |
| Robust foot design suitable for tougher applications | |
| IP55 Ingress protection as standard, being appropriate for severe environments | |
| Terminal box rotatable in 90 degrees | |
Specifications | |
Brand |
WEG |
Catalog Number |
00718ET3E213T-S |
Type |
General Purpose Motor |
HP |
7.5 |
RPM |
1800 |
Phase |
3 |
Hertz |
60 |
Frame |
213/5T |
Mounting |
Foot-mount |
Enclosure |
TEFC |
Voltage |
230/460 |
Full Load Amps |
9.1 |
Full Load Efficiency |
91.7 |
Frame Material |
Rolled Steel |
Service Factor |
1.15 |
"C" Dimensions |
18.898 |
Number of Poles |
2-6 |
Motor Efficiency Group |
NEMA Premium Efficient |
Warranty |
1 Year |
Support Documents (pdf) |
