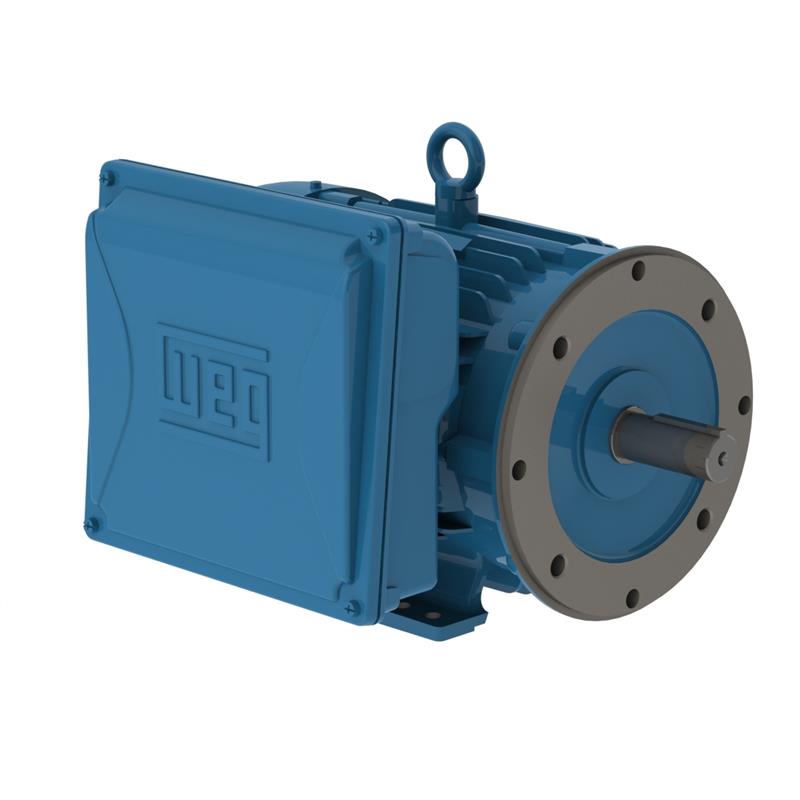

00718ES1E215TC-W22 WEG General Purpose C-Face Motor (7.5 HP, 1800 RPM, 1 Phase, 60 Hz, 215TC Frame, Foot-mounted, TEFC, 208-230/460V)
00718ES1E215TC-W22 WEG General Purpose C-Face Motor (7.5 HP, 1800 RPM, 1 Phase, 60 Hz, 215TC Frame, Foot-mounted, TEFC, 208-230/460V)
[COUNT] shoppers are looking at this right now
No reviews
SKU:00718ES1E215TC-W22
Precio habitual
$1,254.90 USD
Precio habitual
$1,410.00 USD
Precio de oferta
$1,254.90 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
WEG 00718ES1E215TC-W22, General Purpose C-Face Motor, 7.5 HP, 1800 RPM, 1 Phase, 60 Hz, 215TC Frame, Foot-mounted, TEFC, 208-230/460V, Cast Iron
| Applications | |
| High Starting Torque makes these motors ideal for a wide range of applications. | |
| Features | |
| High Starting Torque | |
| 182T frames and up are cast iron for severe duty | |
| NPT Threaded Holes in Terminal Box | |
| Class F insulation | |
| V-ring Seals | |
| Class F insulation | |
|
Specifications |
|
|
Brand
|
WEG
|
|
Catalog Number
|
00718ES1E215TC-W22
|
|
Type
|
General Purpose C-Face Motor
|
|
Series
|
Single Phase Motor
|
|
HP
|
7.5
|
|
RPM
|
1800
|
|
Phase
|
1
|
|
Hertz
|
60
|
|
Frame
|
215TC
|
|
Mounting
|
Foot-mounted
|
|
Enclosure
|
TEFC
|
|
Voltage
|
208-230/460
|
|
Full Load Amps
|
17
|
|
Full Load Efficiency
|
83
|
|
Frame Material
|
Cast Iron
|
|
Warranty
|
1 Year
|
|
