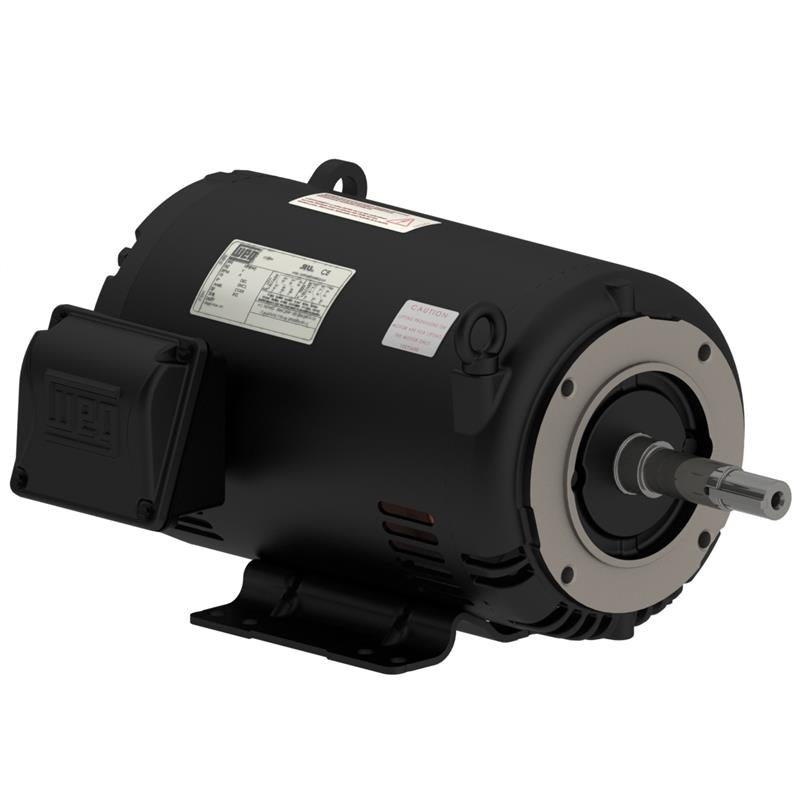

00536OT3E182JM-S WEG Motor (Rolled Steel NEMA Premium Efficiency 5 HP 2P 182/4JM 3Ph 230/460//190-220/380-415 V-ODP)
00536OT3E182JM-S WEG Motor (Rolled Steel NEMA Premium Efficiency 5 HP 2P 182/4JM 3Ph 230/460//190-220/380-415 V-ODP)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:00536OT3E182JM-S
Precio habitual
$694.20 USD
Precio habitual
$780.00 USD
Precio de oferta
$694.20 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
* If you are tax exempt, email your tax form to Sales@kgpowersystems.com
00536OT3E182JM-S WEG Motor (Rolled Steel JM Pump NEMA Premium Efficiency 5 HP 2P 182/4JM 3Ph 230/460//190-220/380-415 V-ODP - Foot-Mnt)
| Frame | 182/4JM |
|---|---|
| Output | 5 HP (3.7 kW) |
| Number of Poles | 2 |
| Frequency | 60 Hz |
| Rated speed | 3510 rpm |
| Slip | 2.50 % |
| Rated voltage | 230/460 V |
| Rated current | 12.2/6.10 A |
| L. R. Amperes | 92.7/46.4 A |
| LRC | 7.6x(Code J) |
| No load current | 5.15/2.58 A |
| Rated torque | 7.48 ft.lb |
| Locked rotor torque | 190 % |
| Breakdown torque | 300 % |
| Locked rotor time | 21s (cold) 12s (hot) |
