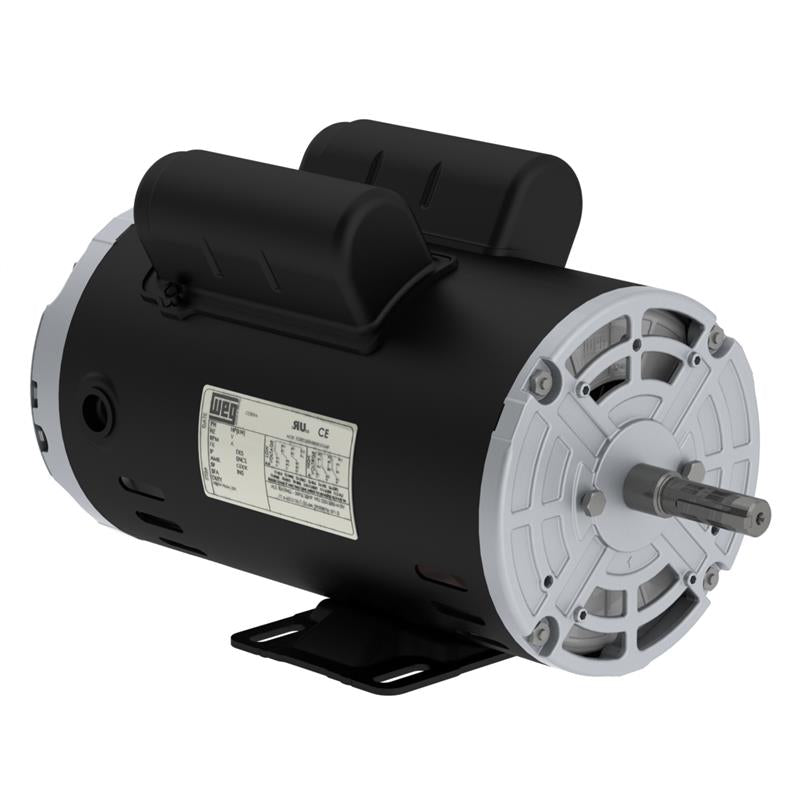

00536OS1DCD56HZ-S WEG Motor (5 HP, 3600 RPM, 1 Phase, 60 Hz, 56HZ Frame, ODP, 230 V)

Name: 00536OS1DCD56HZ-S WEG Motor (5 HP, 3600 RPM, 1 Phase, 60 Hz, 56HZ Frame, ODP, 230 V)
Brand: WEG
SKU: 00536OS1DCD56HZ-S
Price: 350.53 USD
Availability: InStock

SKU:00536OS1DCD56HZ-S

$350.53 USD

Oferta Agotado

Los gastos de envío se calculan en la pantalla de pago.

Cantidad

Don't see the price?

If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.

WEG 00536OS1DCD56HZ-S, 5 HP, 3600 RPM, 1 Phase, 60 Hz, 56HZ Frame, Foot-mounted, ODP, 230 V

Applications
High Starting Torque makes these motors ideal for a wide range of applications.

Features
High Starting Torque
182T frames and up are cast iron for severe duty
NPT Threaded Holes in Terminal Box
Class F insulation
V-ring Seals
Class F insulation

Specifications
Brand	WEG
Catalog Number	00536OS1DCD56HZ-S
Type	General Purpose Motor
Series	Thermally Protected
HP	5
RPM	3600
Phase	1
Hertz	60
Frame	56HZ
Mounting	Foot-mounted
Enclosure	ODP
Voltage	230
Full Load Amps	20.3
Full Load Efficiency	80
Frame Material	Rolled Steel
Service Factor	1
"C" Dimensions	13.533
Warranty	1 Year

Support Documents (pdf)
Features

Questions about this product? Contact our team!
Product images may be generic.
