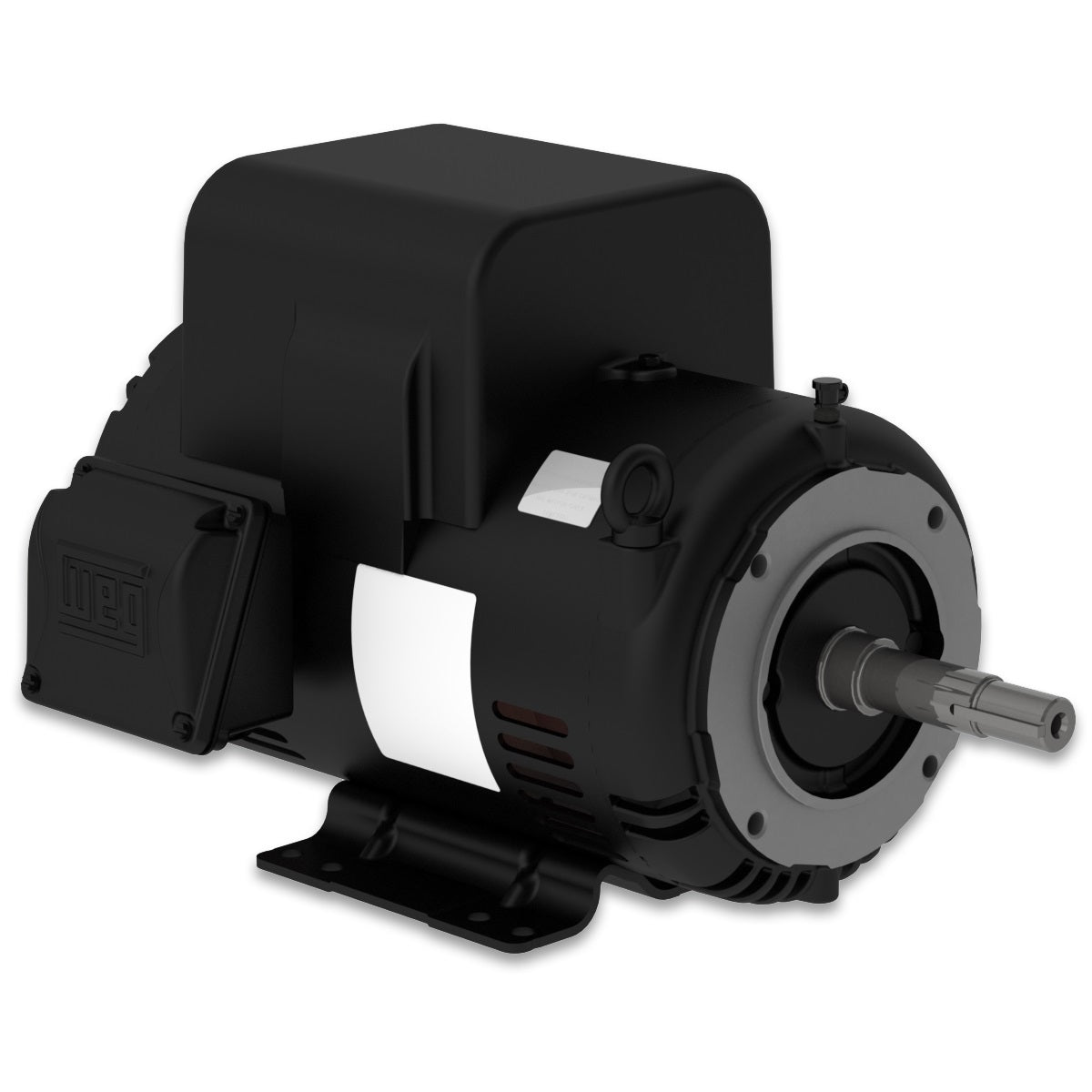

00536OS1B184JM-S WEG Motor Rolled Steel JM Pump Motor (5 HP, 182/4JM, 1Ph, 115/208-230 V, ODP, Foot-mounted)
00536OS1B184JM-S WEG Motor Rolled Steel JM Pump Motor (5 HP, 182/4JM, 1Ph, 115/208-230 V, ODP, Foot-mounted)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:00536OS1B184JM-S
Precio habitual
$1,230.87 USD
Precio habitual
$1,383.00 USD
Precio de oferta
$1,230.87 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
* If you are tax exempt, email your tax form to Sales@kgpowersystems.com
00536OS1B184JM-S WEG Motor Rolled Steel JM Pump Motor (5 HP, 182/4JM, 1Ph, 115/208-230 V, ODP, Foot-mounted)
| Frame | 182/4JM |
|---|---|
| Output | 5 HP (3.7 kW) |
| Number of Poles | 2 |
| Frequency | 60 Hz |
| Rated speed | 3500 rpm |
| Slip | 2.78 % |
| Rated voltage | 115/208-230 V |
| Rated current | 39.5/22.0-19.7 A |
| L. R. Amperes | 265/147-132 A |
| LRC | 6.7x(Code G) |
| No load current | 10.4/3.00-5.20 A |
| Rated torque | 7.50 ft.lb |
| Locked rotor torque | 175 % |
| Breakdown torque | 250 % |
| Locked rotor time | 16s (cold) 9s (hot) |
|---|---|
| Design | L |
| Insulation Class | F |
| Service factor | 1.15 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Enclosure | IC01 - ODP |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Approx. weight³ | 81.6 lb |
