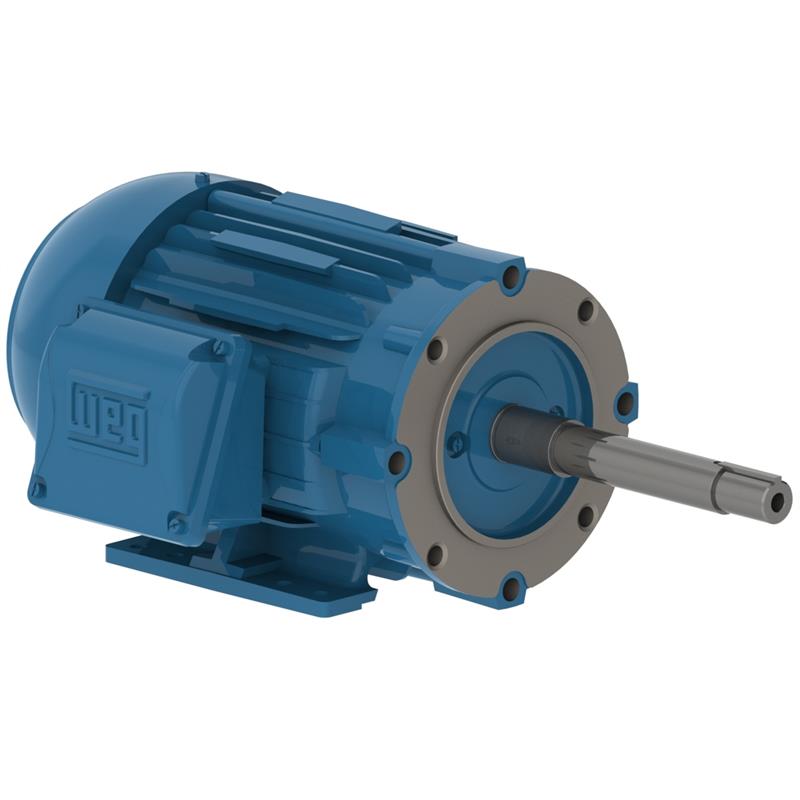

00536ET3E184JP-W22 WEG Motor, Close Coupled Pump (5 HP, 184JP FRAME, 460 V, THREE PHASE, TEFC , 3500 RPM)

00536ET3E184JP-W22 WEG Motor, Close Coupled Pump (5 HP, 184JP FRAME, 460 V, THREE PHASE, TEFC , 3500 RPM)

00536ET3E184JP-W22

$797.25 USD
$797.25 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

WEG Motor 00536ET3E184JP-W22, 5 HP, RPM: 3500, FRAME: 184JP, 460 V, THREE PHASE: 60 Hz, : TEFC, WEG Close Coupled Pump Motor

Applications
Specially developed line for industrial and commercial pumping applications, such as Water pumping, Process, and Transfer and circulating pumps
Features
Close Coupled Pump Motors, 3-Phase, Cast Iron, NEMA Premium, TEFC, JM & JP

Tech Specs

Brand
WEG Motors
Model Number
00536ET3E184JP-W22
HP
5 HP
RPM
3500
FRAME
184JP
VOLTAGE
460 V
PHASE
THREE
FREQUENCY
60 Hz
ENCLOSURE
TEFC
APPROXIMATE WEIGHT (lb)
88
FEET
YES
TERMINAL BOX
LEFT
FLANGE
FC-149
RATED CURRENT
5.90 A
LOCKED ROTOR CURRENT IL IN
8.7
LOCKED ROTOR CURRENT
51.3 A
LOCKED ROTOR TORQUE
2.7
BREAKDOWN TORQUE
3.9
EFFICIENCY 50
86.5
EFFICIENCY 75
88.5
EFFICIENCY 100
88.5
POWER FACTOR 50
0.76
POWER FACTOR 75
0.85
POWER FACTOR 100
0.89
SERVICE FACTOR
1.25
INERTIA KGM2
0.00941 kgm
INERTIA SQ FT LB
0.22330 sq.ft.
LOCKED ROTOR TIME
25 s
NOISE LEVEL
69 dB(A)
ALTITUDE
1000
DUTY CYCLE
S1
AMBIENT TEMPERATURE
-20C - +40C
DEGREE OF PROTECTION
IP55
NO-LOAD CURRENT
2.20 A
INSULATION CLASS
F
FULL LOAD TORQUE NM
10.0 Nm
FULL LOAD TORQUE LB FT
7.40 .ft
SLIP
0.0278
DESIGN
B
TEMPERATURE RISE
80 K
BEARINGS D E
6307 ZZ
BEARINGS N D E
6206 ZZ
REGREASING INTERVAL D E
-
REGREASING INTERVAL N D E
-
GREASE AMOUNT D E
-
GREASE AMOUNT N D E
-
