WEG

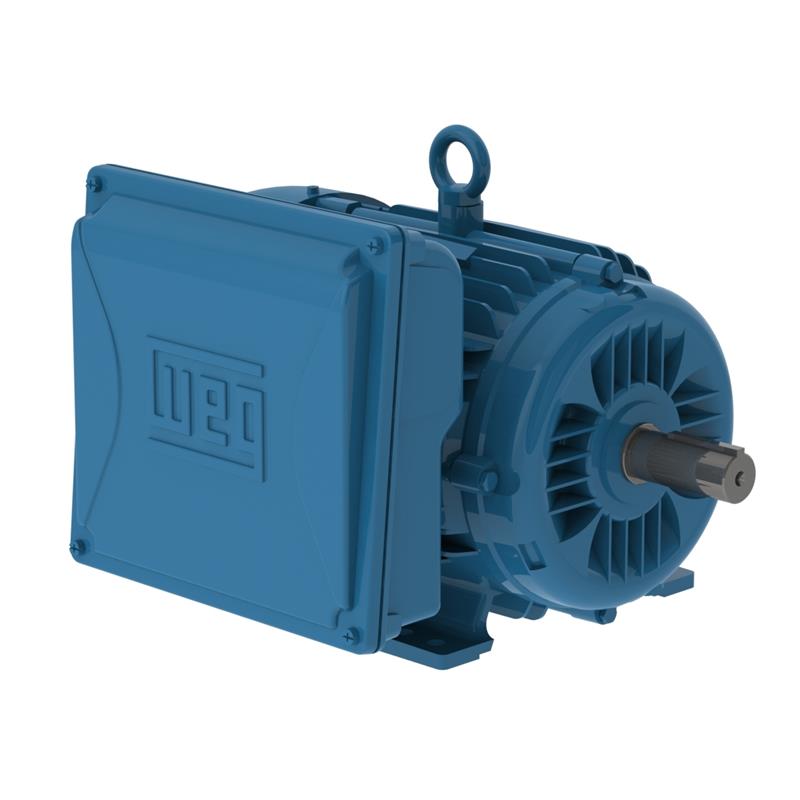

00536ES1B184T WEG General Purpose Motor (5 HP, 3600 RPM, 1 Phase, 184T Frame, TEFC, 115/208-230 Voltage, Foot Mount)

Name: 00536ES1B184T WEG General Purpose Motor (5 HP, 3600 RPM, 1 Phase, 184T Frame, TEFC, 115/208-230 Voltage, Foot Mount)
Brand: WEG
SKU: 00536ES1B184T
Availability: InStock

SKU:00536ES1B184T

$0.00 USD

Oferta Agotado

Los gastos de envío se calculan en la pantalla de pago.

Cantidad

Don't see the price?

If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.

WEG 00536ES1B184T, General Purpose Motor, 5 HP, 3600 RPM, 1 Phase, 184T Frame, TEFC, 115/208-230 Voltage, Foot Mount

Applications
High Starting Torque makes these motors ideal for a wide range of applications.

Features
High Starting Torque
Ball Bearings
NPT Threaded Holes in Terminal Box
Class F insulation
F1 Mounted
V-Ring Seals

Specifications
Brand	WEG
Catalog Number	00536ES1B184T
Type	General Purpose Motor
HP	5
RPM	3600
Phase	1
Frame	184T
Service Factor	1.15
Enclosure	TEFC
Voltage	115/208-230
Motor Mount	Foot Mount
Full Load Efficiency	83
Full Load AMPS	21
"C" Dimension	17.05
Warranty	1 Year

Support Documents (pdf)

Features

Questions about this product? Contact our team!
Product images may be generic.
