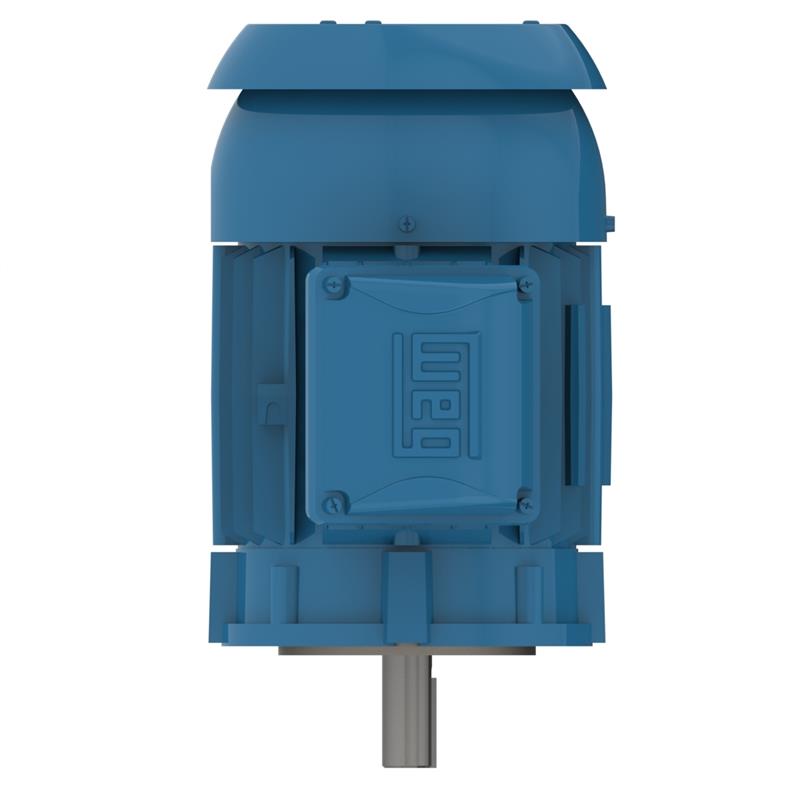

00518ET3ER184TC-W22 WEG Motor (5 HP, 1800 RPM, 3 Phase, 60Hz, 184TC Frame, 230/460 Volt, TEFC Enclosure, Footless)
00518ET3ER184TC-W22 WEG Motor (5 HP, 1800 RPM, 3 Phase, 60Hz, 184TC Frame, 230/460 Volt, TEFC Enclosure, Footless)
[COUNT] shoppers are looking at this right now
No reviews
SKU:00518ET3ER184TC-W22
Precio habitual
$742.26 USD
Precio habitual
$834.00 USD
Precio de oferta
$742.26 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
WEG 00518ET3ER184TC-W22, 5 HP, 1800 RPM, 3 Phase, 60Hz, 184TC Frame, 230/460V, TEFC, Footless
| Applications |
| General Purpose Motor |
| Features |
| F1 mounted (cast iron frames are F2 convertible). Frames 447T and up can easily be F2 converted by simply rotating the terminal box adapter. |
| Class F insulation |
| Efficiency levels: High Efficiency (EPAct) and NEMA Premium |
| IP55 standard, IP56 optional |
| F1 mount as standard |
| Aluminum endshields |
| Cast Iron flanges for improved strength (182/4TC and larger) |
| Internal bolts, giving a clean surface to the motor, avoiding trapping materials and allowing easy paint job after assembly to the load if required |
| Double shielded ball bearings on frames 56 to 213/5T. Optional double sealed ball bearings and/or bearing cap |
|
Specifications |
|
|
Brand
|
WEG
|
|
Catalog Number
|
00518ET3ER184TC-W22
|
|
Type
|
General Purpose Motor
|
|
HP
|
5
|
|
RPM
|
1800
|
|
Phase
|
3
|
|
Frequency
|
60Hz
|
|
Frame
|
184TC
|
|
Voltage
|
230/460
|
|
Enclosure
|
TEFC
|
|
Mounting
|
Footless
|
|
FL Efficiency
|
89.5
|
|
FL Amps
|
6.45
|
|
Construction
|
Cast Iron
|
|
Service Factor
|
1.25
|
|
"C" Dimensions
|
17.197
|
|
Drive End Flange Type
|
C-Face
|
|
Warranty
|
1 Year
|
|
