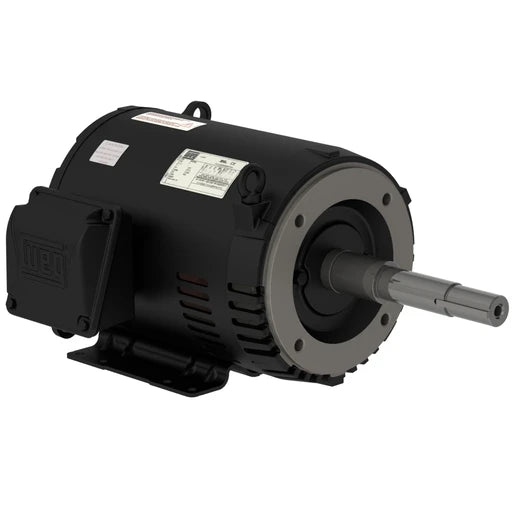

00512OT3E215JP-S WEG Pump (Rolled Steel, JP, NEMA Premium Efficiency, 5 HP, 6P, 213/5JP, 3Ph, 230/460//190-220/380-415 V, 60 Hz, IC01 - ODP - Foot-mounted)
00512OT3E215JP-S WEG Pump (Rolled Steel, JP, NEMA Premium Efficiency, 5 HP, 6P, 213/5JP, 3Ph, 230/460//190-220/380-415 V, 60 Hz, IC01 - ODP - Foot-mounted)
[COUNT] shoppers are looking at this right now
No reviews
SKU:00512OT3E215JP-S
Precio habitual
$1,175.69 USD
Precio habitual
$1,321.00 USD
Precio de oferta
$1,175.69 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
00512OT3E215JP-S WEG Pump (Rolled Steel, JP, NEMA Premium Efficiency, 5 HP, 6P, 213/5JP, 3Ph, 230/460//190-220/380-415 V, 60 Hz, IC01 - ODP - Foot-mounted)
| Frame | 213/5JP |
|---|---|
| Output | 5 HP (3.7 kW) |
| Number of Poles | 6 |
| Frequency | 60 Hz |
| Rated speed | 1175 rpm |
| Slip | 2.08 % |
| Rated voltage | 230/460 V |
| Rated current | 13.5/6.74 A |
| L. R. Amperes | 79.5/39.8 A |
| LRC | 5.9x(Code H) |
| No load current | 7.10/3.55 A |
| Rated torque | 22.3 ft.lb |
| Locked rotor torque | 220 % |
| Breakdown torque | 250 % |
| Locked rotor time | 52s (cold) 29s (hot) |
