WEG

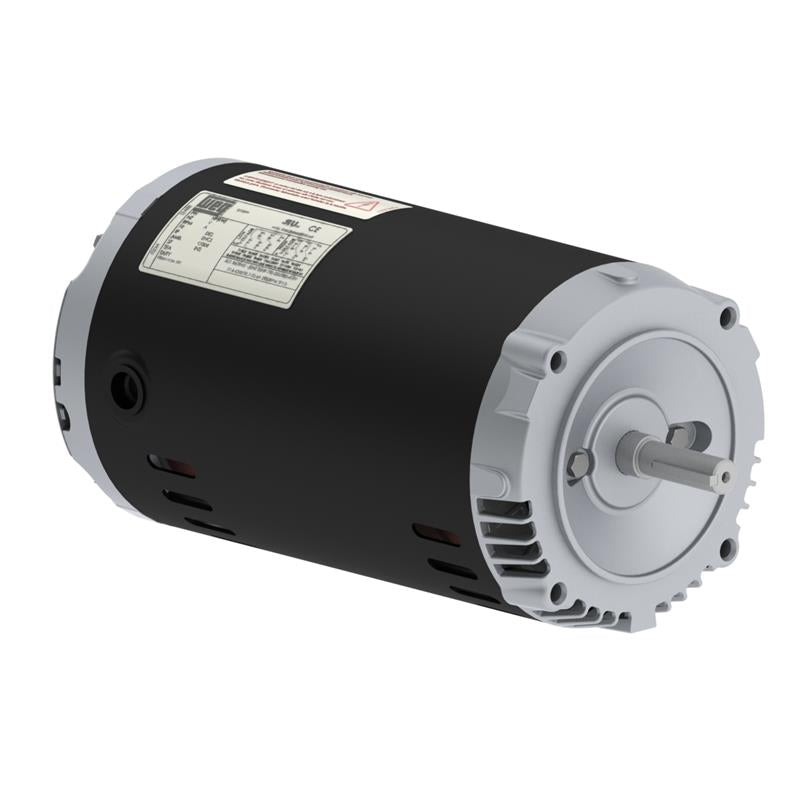

00336OT3E56CFL-S WEG Motor (3 HP, 3600 RPM, 3 Phase, 56C, ODP, 230/460 V, Footless)

00336OT3E56CFL-S WEG Motor (3 HP, 3600 RPM, 3 Phase, 56C, ODP, 230/460 V, Footless)

00336OT3E56CFL-S

$373.85 USD
$373.85 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

WEG 00336OT3E56CFL-S, 3 HP, 3600 RPM, 3 Phase, 56C, ODP, 230/460 V, Footless
Applications
WEG Open Drip Proof (ODP) motor is a general purpose line designed for environments where dirt and moisture are minimal.
Features
Rated Output: 0.25 to 25 HP
Number of Poles: 2 through 6
Class F insulation
Frame Sizes: NEMA 56 to 254/6T
Efficiency levels: NEMA Premium
Frequency: 60 Hz (dual rated 50 Hz 190-220/380-415V)
IP21 standard
F1 mount as standard
Foot mount / C-face / Footless availability
Double shielded ball bearings on frames 56 to 213/5T. Optional double sealed ball bearings and/or bearing cap
Aluminum endshields

Specifications

Brand
WEG
Catalog Number
00336OT3E56CFL-S
Type
General Purpose C-Face Motor
HP
3
RPM
3600
Phase
3
Frame
56C
Enclosure
ODP
Voltage
230/460
Full Load Amps
3.59
Full Load Efficiency
85.5
Frame Material
Rolled Steel
Service Factor
1.15
"C" Dimensions
13.07
Mounting
Footless
Warranty
1 Year

Support Documents (pdf)
Ver todos los detalles
