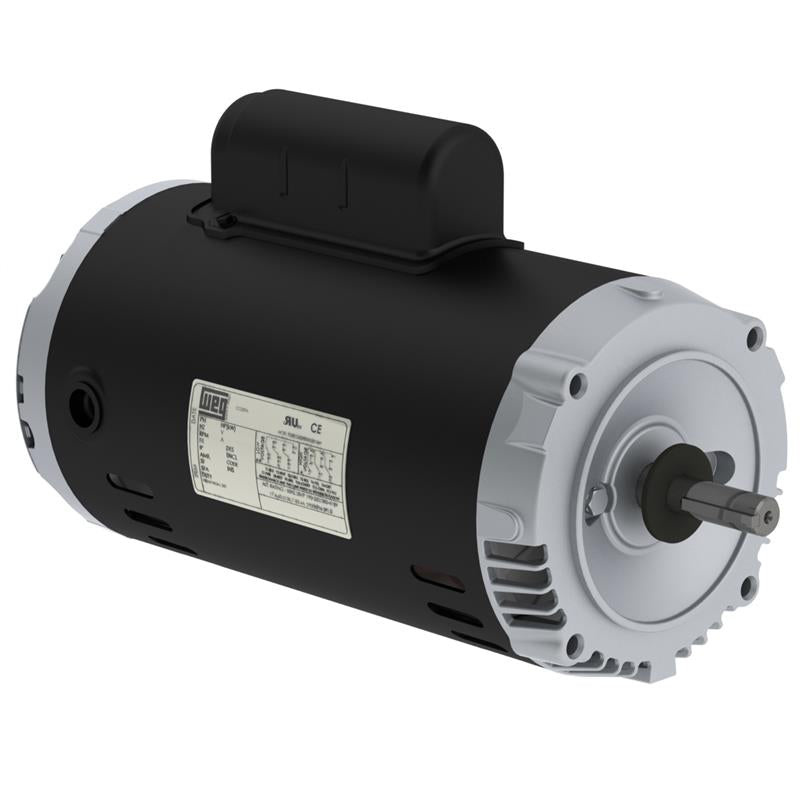

00336OS1DJPR56J-S WEG Jet Pump Motor (3 HP, 3600 RPM, ODP Enclosure, Single Phase, 230 Voltage)
00336OS1DJPR56J-S WEG Jet Pump Motor (3 HP, 3600 RPM, ODP Enclosure, Single Phase, 230 Voltage)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:00336OS1DJPR56J-S
Precio habitual
$444.11 USD
Precio habitual
$499.00 USD
Precio de oferta
$444.11 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
* If you are tax exempt, email your tax form to Sales@kgpowersystems.com
WEG 00336OS1DJPR56J-S, Jet Pump Motor Type, 3 HP, 3600 RPM, ODP Enclosure, Single Phase, 230 Voltage,
| Applications | |
| These versatile motors have the torque and durability for the toughest commercial applications, yet are also economical choices for residential applications. Available with or without base and in J and C configurations | |
| Features | |
| Insulation class B | |
| Sealed ball bearings (Drive end) | |
| NEMA Service factor | |
Specifications | |
Brand |
WEG |
Catalog Number |
00336OS1DJPR56J-S |
Type |
Jet Pump Motor |
HP |
3 |
RPM |
3600 |
Enclosure |
ODP |
Phase |
Single |
Voltage |
230 |
Frame |
56J |
Approx. Weight (lbs) |
45 |
Service Factor |
1 .15 |
FL Amps @ High |
13 .2 |
FL Eff (%) |
77 .1 |
C Dimension (in) |
13 .976 |
Mounting |
Footless |
Frame Material |
Rolled Steel |
Hz |
60 |
Mounting |
F1 |
