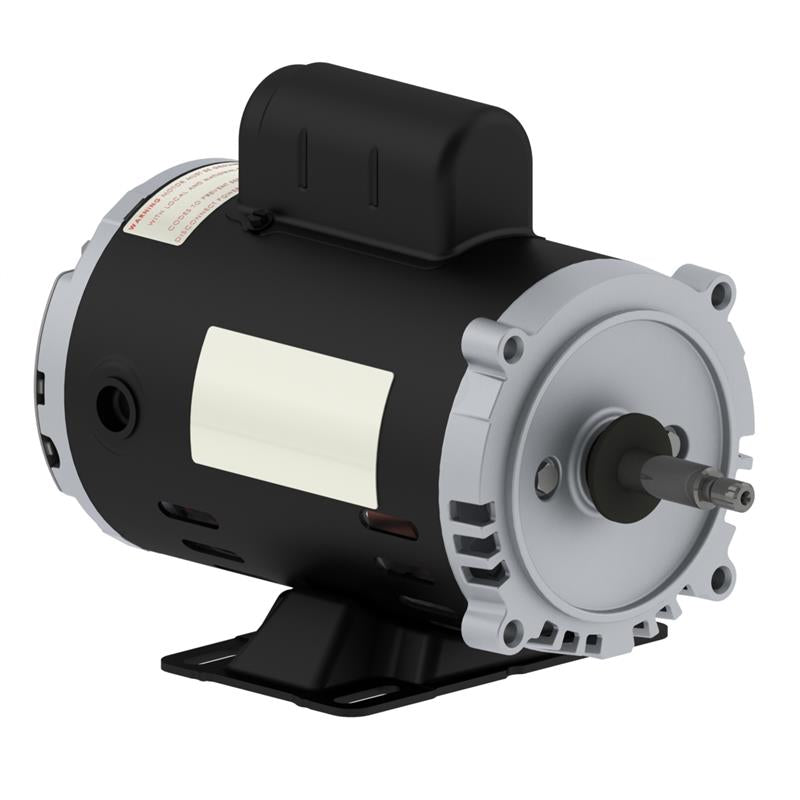

00336OS1DJP56J-S WEG Motor, Jet Pump (3 HP, E56 FRAME, 230 V, SINGLE PHASE, ODP , 3475 RPM)

WEG Motor 00336OS1DJP56J-S, 3 HP , 3475 RPM, E56 FRAME, 230 V , SINGLE PHASE, 60 Hz , ODP , Jet Pump Motor

Applications

The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 Rolled Steel platform has good thermal performance and easy installation and maintenance. With steel plate frame, aluminum flange and threaded shaft end, these versatile single-phase motors provide torque and durability for several applications.

Features

Jet Pump Motor, Single Phase, Rolled Steel, Standard Efficiency, ODP

Tech Specs
Brand	WEG Motors
Model Number	00336OS1DJP56J-S
HP	3 HP
RPM	3475
FRAME	E56
VOLTAGE	230 V
PHASE	SINGLE
FREQUENCY	60 Hz
ENCLOSURE	ODP
APPROXIMATE WEIGHT (lb)	51
FEET	YES
TERMINAL BOX	LEFT
FLANGE	FC-149
RATED CURRENT	15.0 A
LOCKED ROTOR CURRENT IL IN	7
LOCKED ROTOR CURRENT	105 A
LOCKED ROTOR TORQUE	2.2
BREAKDOWN TORQUE	2.3
EFFICIENCY 50	76.7
EFFICIENCY 75	78.7
EFFICIENCY 100	77.1
POWER FACTOR 50	0.63
POWER FACTOR 75	0.76
POWER FACTOR 100	0.83
SERVICE FACTOR	1.15
INERTIA KGM2	0.00280 kgm
INERTIA SQ FT	0.06644 sq.ft.
LOCKED ROTOR TIME	6 s
NOISE LEVEL	-
ALTITUDE	1000
DUTY CYCLE	S1
AMBIENT TEMPERATURE	-20C - +40C
DEGREE OF PROTECTION	IP21
NO-LOAD CURRENT	8.00 A
INSULATION CLASS	B
FULL LOAD TORQUE NM	6.06 Nm
FULL LOAD TORQUE FT	4.47 .ft
SLIP	0.0347
DESIGN	-
TEMPERATURE RISE	80 K
BEARINGS D E	6203 2RS
BEARINGS N D E	6203 2RS
REGREASING INTERVAL D E	-
REGREASING INTERVAL N D E	-
GREASE AMOUNT D E	-
GREASE AMOUNT N D E	-
