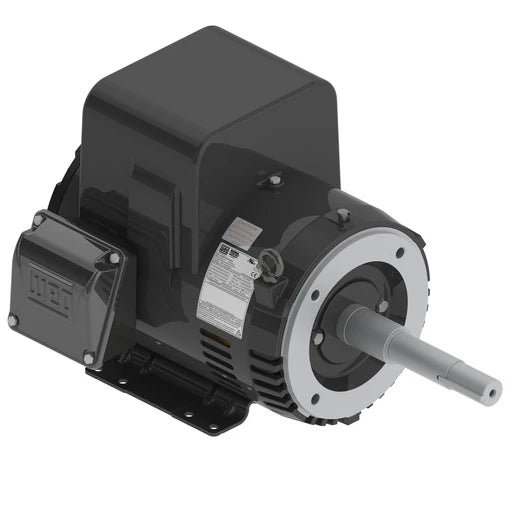

00336OS1B182JP-S WEG Pump Motor (ROLLED STEEL, 3 HP, 2P, 182/4JP, 1Phase, 115/208-230V, 60 Hz, IC01 - ODP - Foot-mounted)
00336OS1B182JP-S WEG Pump Motor (ROLLED STEEL, 3 HP, 2P, 182/4JP, 1Phase, 115/208-230V, 60 Hz, IC01 - ODP - Foot-mounted)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:00336OS1B182JP-S
Precio habitual
$869.53 USD
Precio habitual
$977.00 USD
Precio de oferta
$869.53 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.
* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.
** Taxes may be applied after an order is placed.
00336OS1B182JP-S WEG Pump Motor (ROLLED STEEL, 3 HP, 2P, 182/4JP, 1Phase, 115/208-230V, 60 Hz, IC01 - ODP - Foot-mounted)
| Frame | 182/4JP |
|---|---|
| Output | 3 HP (2.2 kW) |
| Number of Poles | 2 |
| Frequency | 60 Hz |
| Rated speed | 3510 rpm |
| Slip | 2.50 % |
| Rated voltage | 115/208-230 V |
| Rated current | 25.3/14.0-12.7 A |
| L. R. Amperes | 177/98.0-88.9 A |
| LRC | 7.0x(Code H) |
| No load current | 12.6/5.70-6.30 A |
| Rated torque | 4.49 ft.lb |
| Locked rotor torque | 235 % |
| Breakdown torque | 270 % |
