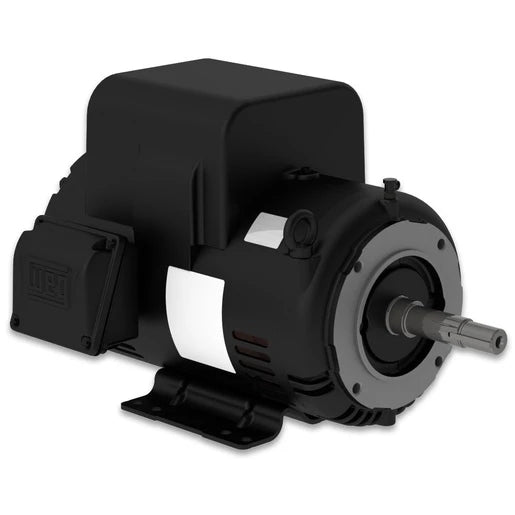

00336OS1B182JM-S WEG Pump Motor (Rolled Steel, JM Pump, 3 HP, 2P, 182/4JM, 1Phase, 115/208-230V, 60 Hz, IC01 - ODP - Foot-mounted)
00336OS1B182JM-S WEG Pump Motor (Rolled Steel, JM Pump, 3 HP, 2P, 182/4JM, 1Phase, 115/208-230V, 60 Hz, IC01 - ODP - Foot-mounted)
[COUNT] shoppers are looking at this right now
No reviews
SKU:00336OS1B182JM-S
Precio habitual
$869.53 USD
Precio habitual
$977.00 USD
Precio de oferta
$869.53 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
00336OS1B182JM-S WEG Pump Motor (Rolled Steel, JM Pump, 3 HP, 2P, 182/4JM, 1Phase, 115/208-230V, 60 Hz, IC01 - ODP - Foot-mounted)
| Frame | 182/4JM |
|---|---|
| Output | 3 HP (2.2 kW) |
| Number of Poles | 2 |
| Frequency | 60 Hz |
| Rated speed | 3510 rpm |
| Slip | 2.50 % |
| Rated voltage | 115/208-230 V |
| Rated current | 25.8/13.8-12.9 A |
| L. R. Amperes | 173/92.5-86.4 A |
| LRC | 6.7x(Code H) |
| No load current | 10.5/3.90-5.20 A |
| Rated torque | 4.49 ft.lb |
| Locked rotor torque | 220 % |
| Breakdown torque | 260 % |
