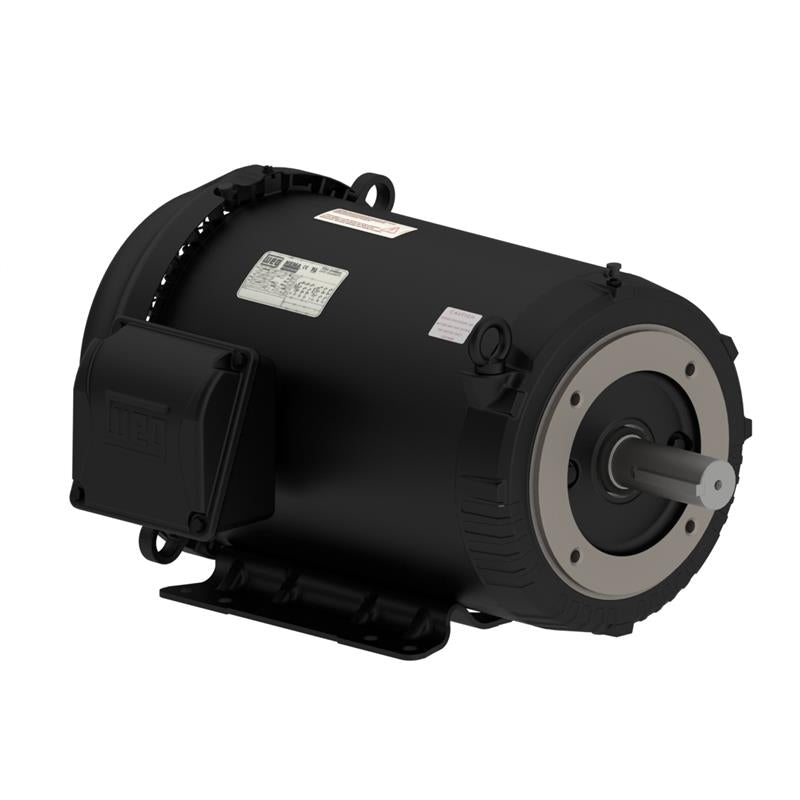

00336ET3E56C-S WEG Motor (3 HP, 3600 RPM, 3 Phase, 60 Hz, 56HC Frame, Foot Mount, TEFC, 230/460 V)
00336ET3E56C-S WEG Motor (3 HP, 3600 RPM, 3 Phase, 60 Hz, 56HC Frame, Foot Mount, TEFC, 230/460 V)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:00336ET3E56C-S
Precio habitual
$539.34 USD
Precio habitual
$606.00 USD
Precio de oferta
$539.34 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.
* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.
** Taxes may be applied after an order is placed.
WEG 00336ET3E56C-S, 3 HP, 3600 RPM, 3 Phase, 60 Hz, 56HC Frame, Foot Mount, TEFC, 230/460 V
| Applications | |
| General Purpose Motor | |
| Features | |
| Rated Output: 0.25 to 25 HP | |
| Number of Poles: 2 to 6 | |
| Class F insulation | |
| Frame Sizes: NEMA 56 to 254/6T | |
| Frequency: 60 Hz (dual rated 50 Hz 190-220/380-415V) | |
| F1 mount as standard | |
| New ventilation system for improved thermal performance | |
| IP55 Ingress Protection as standard, being appropriate for severe environments | |
| Suitable for VFD operation as per NEMA MG1 part 31.4.4.2 | |
| Color coded/numbered leads as standard for easy wiring | |
| New and more robust eyebolts design (frames 182/4T and up) plus an additional eyebolt on non-drive end allowing vertical shaft down lifting for frames 213/5T and 254/6T | |
Specifications | |
Brand |
WEG |
Catalog Number |
00336ET3E56C-S |
Type |
General Purpose Motor |
HP |
3 |
RPM |
3600 |
Phase |
3 |
Frame |
56HC |
Mounting |
Foot Mount |
Enclosure |
TEFC |
Voltage |
230/460 |
FL Amps |
3.5 |
FL Efficiency |
86.5 |
Construction |
Rolled Steel |
Service Factor |
1.15 |
"C" Dimensions |
15.079 |
Drive End Flange Type |
C-Face |
Warranty |
1 Year |
Support Documents (pdf) | ||||
