WEG

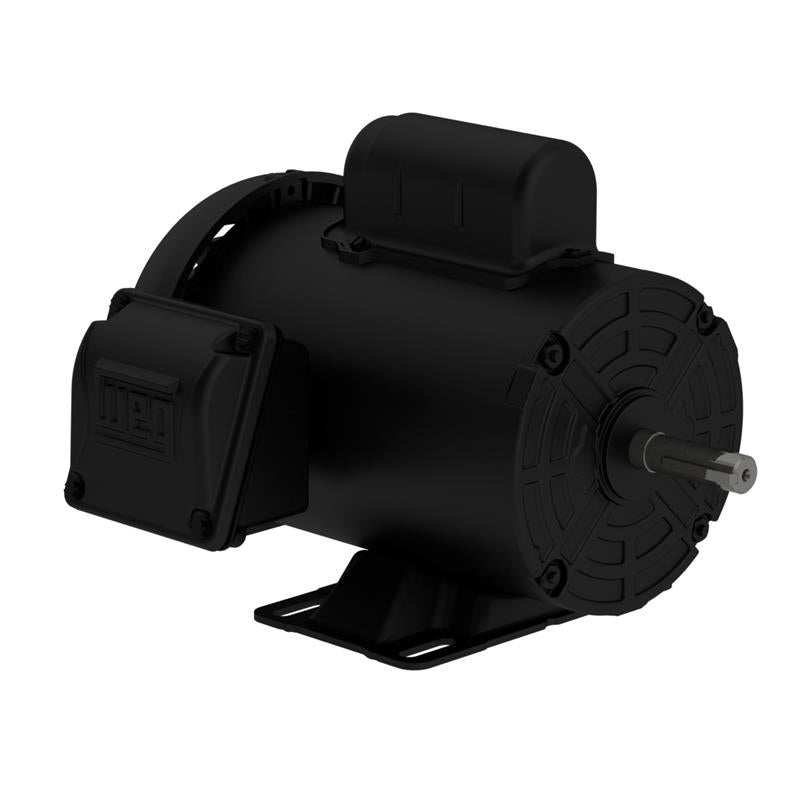

00336ES1B145T-S WEG General Purpose Motor (3 HP, 3600 RPM, 1 Phase, 143/5T Frame, TEFC, 115/208-230 Voltage, Foot Mount)
00336ES1B145T-S WEG General Purpose Motor (3 HP, 3600 RPM, 1 Phase, 143/5T Frame, TEFC, 115/208-230 Voltage, Foot Mount)
[COUNT] shoppers are looking at this right now
No reviews
SKU:00336ES1B145T-S
Precio habitual
$738.70 USD
Precio habitual
$830.00 USD
Precio de oferta
$738.70 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
WEG 00336ES1B145T-S, General Purpose Motor, 3 HP, 3600 RPM, 1 Phase, 143/5T Frame, TEFC, 115/208-230 Voltage, Foot Mount
| Applications | |
| High Starting Torque makes these motors ideal for a wide range of applications. | |
| Features | |
| High Starting Torque | |
| Ball Bearings | |
| NPT Threaded Holes in Terminal Box | |
| Class F insulation | |
| F1 Mounted | |
| V-Ring Seals | |
Specifications | |
Brand |
WEG |
Catalog Number |
00336ES1B145T-S |
Type |
General Purpose Motor |
HP |
3 |
RPM |
3600 |
Phase |
1 |
Frame |
143/5T |
Service Factor |
1.15 |
Enclosure |
TEFC |
Voltage |
115/208-230 |
Motor Mount |
Foot Mount |
Full Load Efficiency |
80 |
Full Load AMPS |
12.7 |
"C" Dimension |
15.545 |
Warranty |
1 Year |
Support Documents (pdf) | ||||
