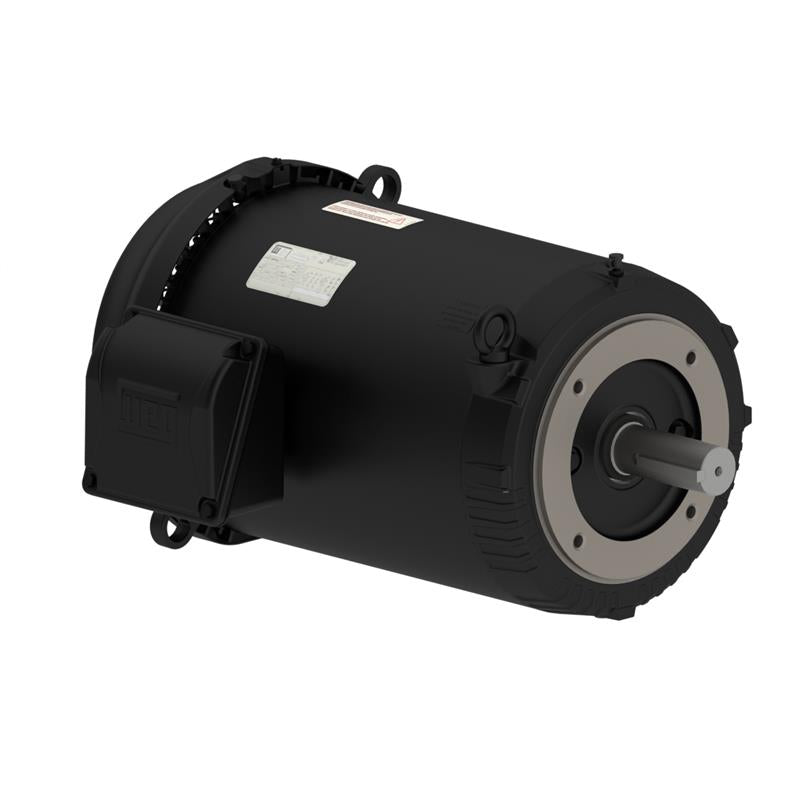

00318ET3ER182TC-S WEG Motor (3 HP, 1800 RPM, 3 Phase, 60 Hz, 182/4TC Frame, 230/460V, TEFC, Footless)

00318ET3ER182TC-S WEG Motor (3 HP, 1800 RPM, 3 Phase, 60 Hz, 182/4TC Frame, 230/460V, TEFC, Footless)

[COUNT] shoppers are looking at this right now

00318ET3ER182TC-S

$542.90 USD
$610.00 USD $542.90 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

WEG 00318ET3ER182TC-S, 3 HP, 1800 RPM, 3 Phase, 60 Hz, 182/4TC Frame, 230/460V, TEFC, Footless

Applications
General Purpose Motor
Features
New ventilation system for improved thermal performance
Color coded/numbered leads as standard for easy wiring
Bearing cap as standard on flanged motors, optional on non-flanged
IP55 Ingress Protection as standard, being appropriate for severe environments
Motor frame painting system resistant to a minimum of 500 hours ASTM B117 salt spray test
Suitable for VFD operation as per NEMA MG1 part 31.4.4.2
Aluminum endshields and flange
Internal bolts, giving a clean surface to the motor, avoiding trapping materials and allowing easy paint job after assembly to the load, if required
Double shielded ball bearings

Specifications

Brand
WEG
Catalog Number
00318ET3ER182TC-S
Type
General Purpose Motor
HP
3
RPM
1800
Phase
3
Frequency
60 Hz
Frame
182/4TC
Voltage
230/460
Enclosure
TEFC
Mounting
Footless
FL Efficiency
89.5
FL Amps
3.8
Construction
Rolled Steel
Service Factor
1.15
"C" Dimensions
17.913
Drive End Flange Type
C-Face
Warranty
1 Year

Support Documents (pdf)
  • Questions about this product? Contact our team!
  • This item is direct shipped from the manufacturer. Lead times will vary. Contact for availability.
  • All images shown on our website are for illustration purpose only and may not be an exact representation of the product. Actual products may vary from the images shown.
