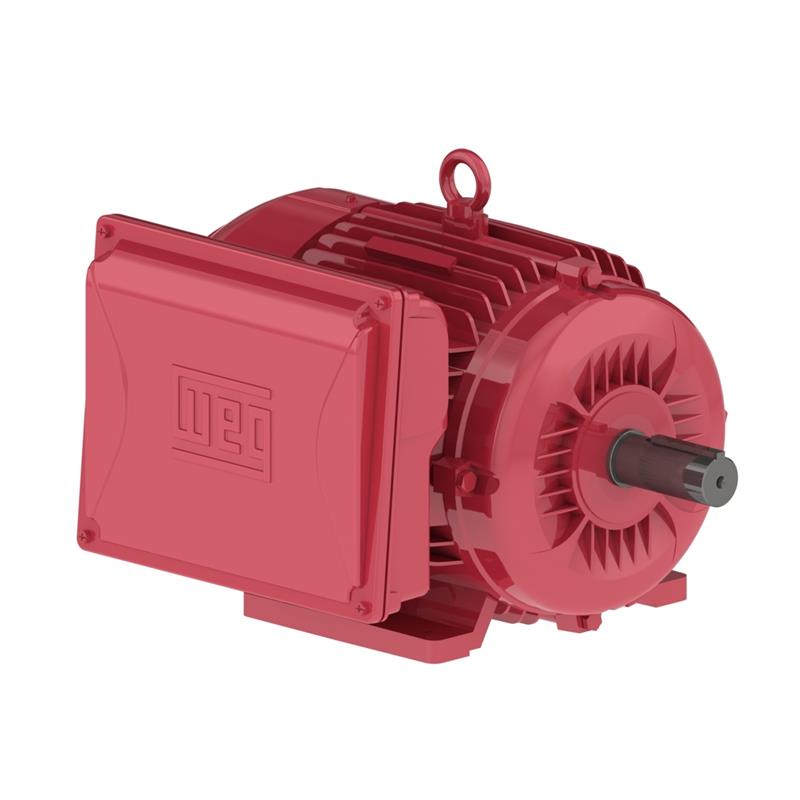

00318ES1DFD184T-W22 WEG Motor, Farm Duty (3 HP, W182/4T FRAME, 230 V, SINGLE PHASE, TEFC , 1740 RPM)

00318ES1DFD184T-W22 WEG Motor, Farm Duty (3 HP, W182/4T FRAME, 230 V, SINGLE PHASE, TEFC , 1740 RPM)

00318ES1DFD184T-W22

$666.81 USD
$666.81 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

WEG Motor 00318ES1DFD184T-W22, 3 HP, RPM: 1740, FRAME: W182/4T, 230 V, SINGLE PHASE: 60 Hz, : TEFC, WEG Farm Duty Motor
Applications
Pumps, Fans, Conveyors, Poultry equipment, Air compressors, Other farm machinery
Features
Farm Duty Motor, Single Phase, Rolled Steel or Cast Iron, Standard Efficiency, TEFC

Tech Specs

Brand
WEG Motors
Model Number
00318ES1DFD184T -W22
HP
3 HP
RPM
1740
FRAME
W182/4T
VOLTAGE
230 V
PHASE
SINGLE
FREQUENCY
60 Hz
ENCLOSURE
TEFC
APPROXIMATE WEIGHT (lb)
88
FEET
YES
TERMINAL BOX
LEFT
FLANGE
-
RATED CURRENT
14.5 A
LOCKED ROTOR CURRENT IL IN
6
LOCKED ROTOR CURRENT
87.0 A
LOCKED ROTOR TORQUE
2.6
BREAKDOWN TORQUE
2.2
EFFICIENCY 50
80
EFFICIENCY 75
80.5
EFFICIENCY 100
81
POWER FACTOR 50
0.73
POWER FACTOR 75
0.81
POWER FACTOR 100
0.86
SERVICE FACTOR
1.15
INERTIA KGM2
0.01000 kgm
INERTIA SQ FT
0.23730 sq.ft.
LOCKED ROTOR TIME
6 s
NOISE LEVEL
54 dB(A)
ALTITUDE
1000
DUTY CYCLE
S1
AMBIENT TEMPERATURE
-20C - +40C
DEGREE OF PROTECTION
IP55
NO-LOAD CURRENT
6.00 A
INSULATION CLASS
F
FULL LOAD TORQUE NM
12.1 Nm
FULL LOAD TORQUE FT
8.93 .ft
SLIP
0.0333
DESIGN
-
TEMPERATURE RISE
80 K
BEARINGS D E
6206 ZZ
BEARINGS N D E
6206 ZZ
REGREASING INTERVAL D E
-
REGREASING INTERVAL N D E
-
GREASE AMOUNT D E
-
GREASE AMOUNT N D E
-
