WEG

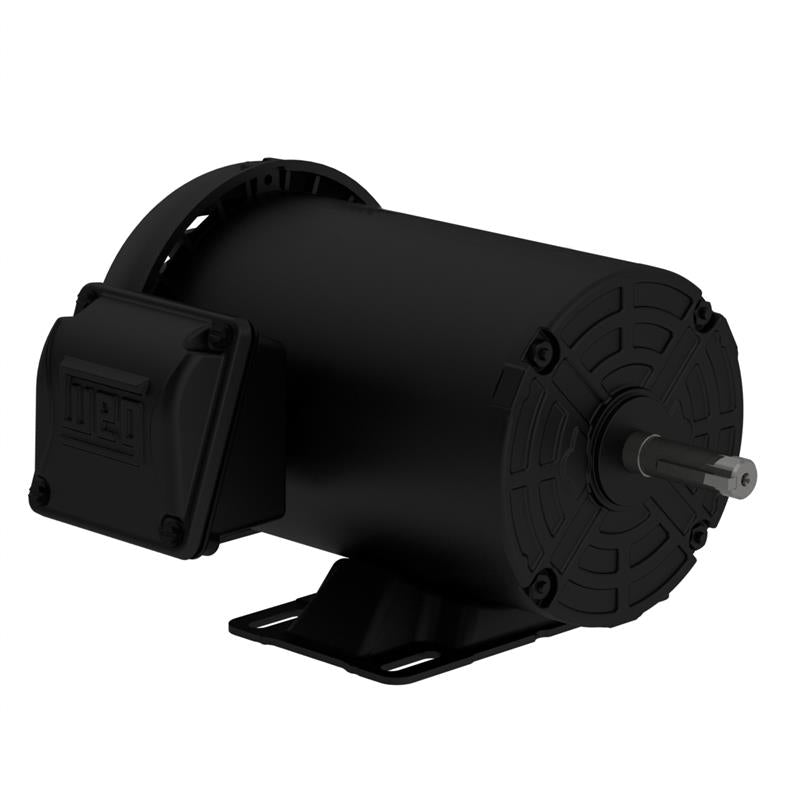

00218ET3E145T-S WEG Motor (2 HP, 1800 RPM, 3 Phase, 60 Hz, 143/5T Frame, TEFC, 230/460 V)

Name: 00218ET3E145T-S WEG Motor (2 HP, 1800 RPM, 3 Phase, 60 Hz, 143/5T Frame, TEFC, 230/460 V)
Brand: WEG
SKU: 00218ET3E145T-S
Price: 388.43 USD
Availability: InStock

SKU:00218ET3E145T-S

$388.43 USD

Oferta Agotado

Los gastos de envío se calculan en la pantalla de pago.

Cantidad

Don't see the price?

If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.

WEG 00218ET3E145T-S, 2 HP, 1800 RPM, 3 Phase, 60 Hz, 143/5T Frame, Foot-mounted, TEFC, 230/460 V

Applications
General Application

Features
Rated Output: 0.25 to 25 HP
Number of Poles: 2 to 6
Class F insulation
Frame Sizes: NEMA 56 to 254/6T
Frequency: 60 Hz (dual rated 50 Hz 190-220/380-415V)
F1 mount as standard
Aluminum endshields
New ventilation system for improved thermal performance
Robust foot design suitable for tougher applications
IP55 Ingress protection as standard, being appropriate for severe environments
Terminal box rotatable in 90 degrees

Specifications
Brand	WEG
Catalog Number	00218ET3E145T-S
Type	General Purpose Motor
HP	2
RPM	1800
Phase	3
Hertz	60
Frame	143/5T
Mounting	Foot-mounted
Enclosure	TEFC
Voltage	230/460
Full Load Amps	2.7
Full Load Efficiency	86.5
Frame Material	Rolled Steel
Service Factor	1.15
"C" Dimensions	13.976
Number of Poles	2-6
Motor Efficiency Group	NEMA Premium Efficient
Warranty	1 Year

Support Documents (pdf)

Questions about this product? Contact our team!
Product images may be generic.

Ver todos los detalles
