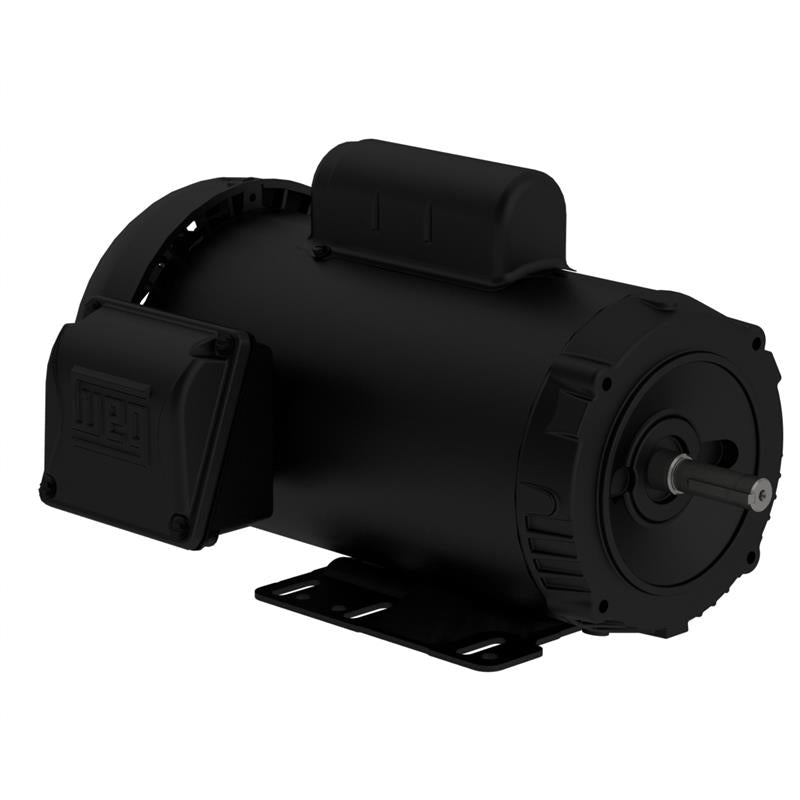

00218ES1B145TC-S WEG General Purpose C-Face Motor (2 HP, 1PH, 115/208-230V)
00218ES1B145TC-S WEG General Purpose C-Face Motor (2 HP, 1PH, 115/208-230V)
[COUNT] shoppers are looking at this right now
No reviews
SKU:00218ES1B145TC-S
Precio habitual
$572.27 USD
Precio habitual
$643.00 USD
Precio de oferta
$572.27 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
WEG 00218ES1B145TC-S, General Purpose C-Face Motor Type, 2 HP, 1800 RPM, 1 Phase, 60 Hz, 143/5TC Frame, Foot-mounted, TEFC, 115/208-230V
| Applications | |
| High Starting Torque makes these motors ideal for a wide range of applications. | |
| Features | |
| High Starting Torque | |
| 182T frames and up are cast iron for severe duty | |
| NPT Threaded Holes in Terminal Box | |
| Class F insulation | |
| V-ring Seals | |
| Class F insulation | |
Specifications | |
Brand |
WEG |
Catalog Number |
00218ES1B145TC-S |
Type |
General Purpose C-Face Motor |
Series |
Single Phase Motor |
HP |
2 |
RPM |
1800 |
Phase |
1 |
Hertz |
60 |
Frame |
143/5TC |
Mounting |
Foot-mounted |
Enclosure |
TEFC |
Voltage |
115/208-230 |
Full Load Amps |
10 |
Full Load Efficiency |
78.5 |
Frame Material |
Rolled Steel |
Warranty |
1 Year |
Support Documents (pdf) | ||||
