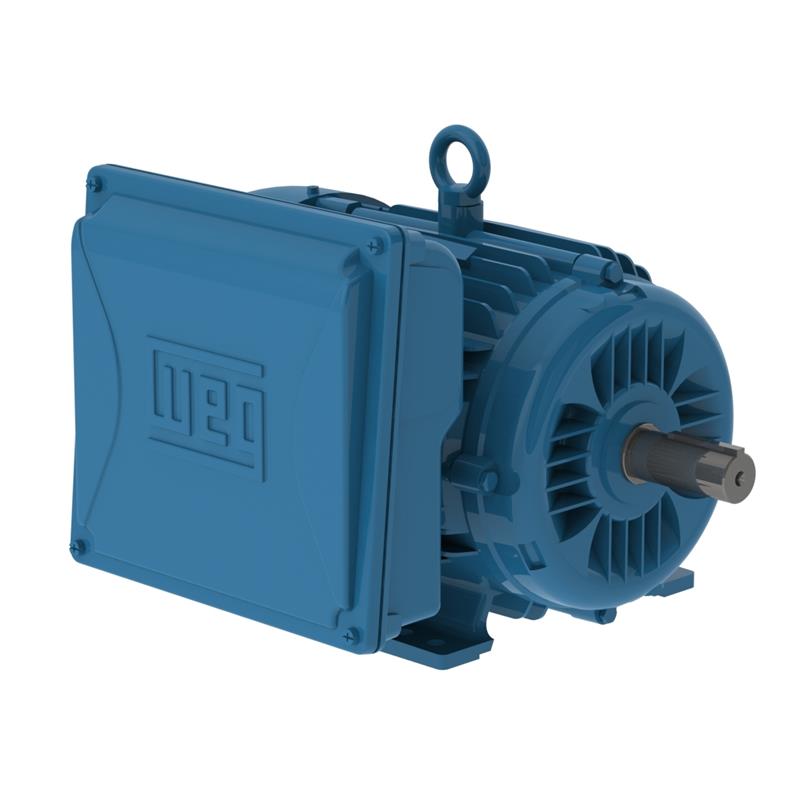

00212ES1E213T-W22 WEG Motor (2 HP, 213T FRAME, 208-230/460 V, SINGLE PHASE, TEFC , 1160 RPM)

WEG Motor 00212ES1E213T, 2 HP, RPM: 1160, FRAME: 213T, 208-230/460 V, SINGLE PHASE: 60 Hz, : TEFC, WEG General Purpose Motor

Applications

Pumps, fans, crushers, conveyors, machine tools, milling applications, centrifugal machines, presses, elevators, looms, grinders, woodworking, cooling, packaging equipment, other Severe Duty applications

Features

WEG General Purpose Single Phase Cast Iron Motor, Standard, TEFC

Tech Specs
Brand	WEG Motors
Model Number	00212ES1E213T
HP	2 HP
RPM	1160
FRAME	213T
VOLTAGE	208-230/460 V
PHASE	SINGLE
FREQUENCY	60 Hz
ENCLOSURE	TEFC
APPROXIMATE WEIGHT (lb)	108
FEET	YES
TERMINAL BOX	LEFT
FLANGE	-
RATED CURRENT	10.0/5.00 A
LOCKED ROTOR CURRENT IL IN	7
LOCKED ROTOR CURRENT	70.0/35.0 A
LOCKED ROTOR TORQUE	2.4
BREAKDOWN TORQUE	2.3
EFFICIENCY 50	68
EFFICIENCY 75	75
EFFICIENCY 100	80
POWER FACTOR 50	0.68
POWER FACTOR 75	0.75
POWER FACTOR 100	0.8
SERVICE FACTOR	1.15
INERTIA KGM2	0.02240 kgm
INERTIA SQ FT	0.53155 sq.ft.
LOCKED ROTOR TIME	6 s
NOISE LEVEL	60 dB(A)
ALTITUDE	1000
DUTY CYCLE	S1
AMBIENT TEMPERATURE	-20C - +40C
DEGREE OF PROTECTION	IP55
NO-LOAD CURRENT	6.00/3.00 A
INSULATION CLASS	F
FULL LOAD TORQUE NM	12.1 Nm
FULL LOAD TORQUE FT	8.93 .ft
SLIP	0.0333
DESIGN	-
TEMPERATURE RISE	80 K
BEARINGS D E	6308 ZZ
BEARINGS N D E	6206 ZZ
REGREASING INTERVAL D E	-
REGREASING INTERVAL N D E	-
GREASE AMOUNT D E	-
GREASE AMOUNT N D E	-
