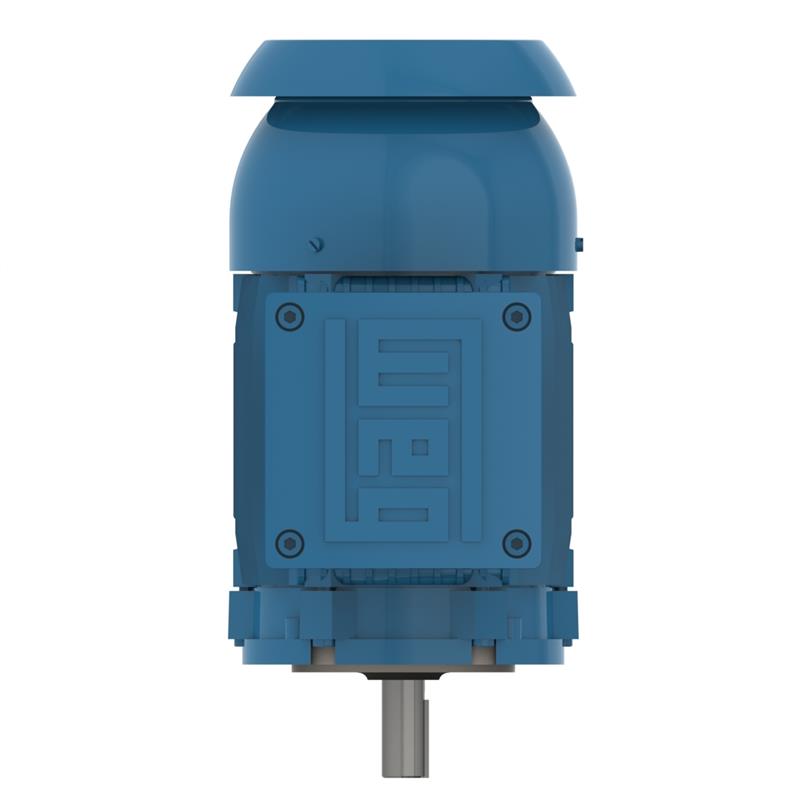

00158XT3ER145TC WEG Explosion Proof Motor (1.5 HP, 1800 RPM, 3 Phase, 145TC Frame, 208-230/460 Voltage, Explosion Proof)
00158XT3ER145TC WEG Explosion Proof Motor (1.5 HP, 1800 RPM, 3 Phase, 145TC Frame, 208-230/460 Voltage, Explosion Proof)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:00158XT3ER145TC
Precio habitual
$0.00 USD
Precio habitual
$1,135.00 USD
Precio de oferta
$0.00 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.
* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.
** Taxes may be applied after an order is placed.
WEG 00158XT3ER145TC, Series, 1.5 HP, 1.1 KW, 1800 RPM, 3 Phase, 145TC Frame, 208-230/460 Voltage, Explosion Proof
| Applications | |
| WEG Explosion Proof motors are suitable for applications requiring UL or CSA certification for hazardous locations. | |
| Features | |
| Class F insulation (Impregnation Resin and Magnet wire are class H) | |
| F1 Mounted (Cast Iron frames are F2 convertible) | |
| Stainless Steel Nameplate - Laser etched with high contrast background | |
| All frames with regreasable ball bearings (Frames 364T and up) | |
| CSA Approved - File LR50962 | |
| UL Listed - File E87848 | |
Specifications | |
Brand |
WEG |
Catalog Number |
00158XT3ER145TC |
Type |
Explosion Proof |
HP |
1.5 |
KW |
1.1 |
RPM |
1800 |
Phase |
3 |
Service Factor |
1.15 |
Frame |
145TC |
Voltage |
208-230/460 |
Enclosure |
Explosion Proof |
Mount |
Footless |
Full Load Amps |
2.05 |
Warranty |
1 Year |
Support Documents (pdf) | ||||
