WEG

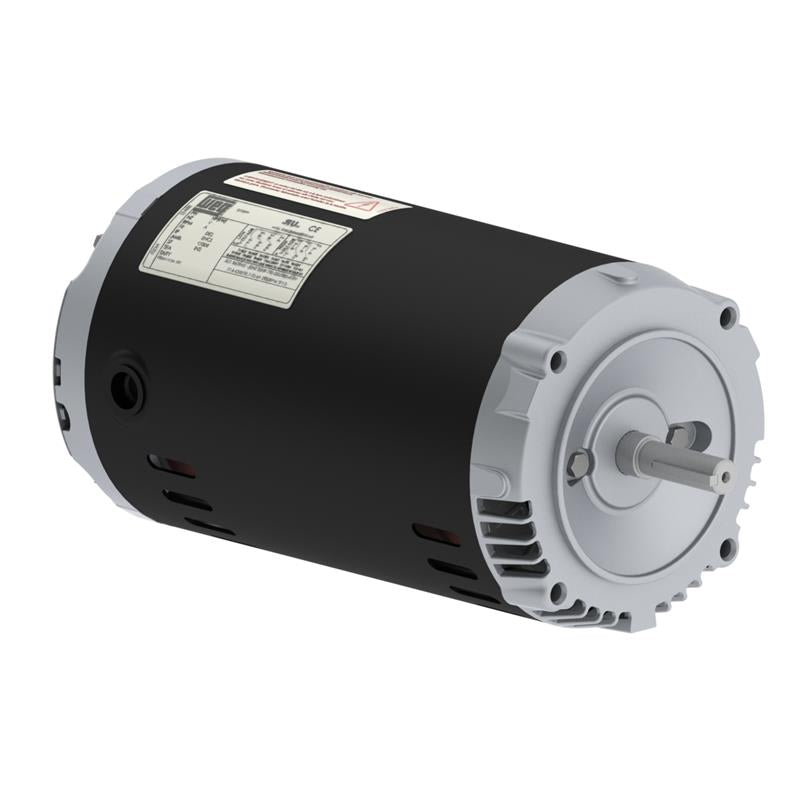

00158OT3E56CFL-S WEG Motor (1.5 HP, 1800 RPM, 3 Phase, 56C, ODP, 230/460 V, Footless)
00158OT3E56CFL-S WEG Motor (1.5 HP, 1800 RPM, 3 Phase, 56C, ODP, 230/460 V, Footless)
SKU:00158OT3E56CFL-S
Precio habitual
$283.49 USD
Precio habitual
Precio de oferta
$283.49 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
Don't see the price?
Don't see the price?
If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.
No se pudo cargar la disponibilidad de retiro
WEG 00158OT3E56CFL-S, 1.5 HP, 1800 RPM, 3 Phase, 56C, ODP, 230/460 V, Footless
| Applications | |
| WEG Open Drip Proof (ODP) motor is a general purpose line designed for environments where dirt and moisture are minimal. | |
| Features | |
| Rated Output: 0.25 to 25 HP | |
| Number of Poles: 2 through 6 | |
| Class F insulation | |
| Frame Sizes: NEMA 56 to 254/6T | |
| Efficiency levels: NEMA Premium | |
| Frequency: 60 Hz (dual rated 50 Hz 190-220/380-415V) | |
| IP21 standard | |
| F1 mount as standard | |
| Foot mount / C-face / Footless availability | |
| Double shielded ball bearings on frames 56 to 213/5T. Optional double sealed ball bearings and/or bearing cap | |
| Aluminum endshields | |
Specifications | |
Brand |
WEG |
Catalog Number |
00158OT3E56CFL-S |
Type |
General Purpose C-Face Motor |
HP |
1.5 |
RPM |
1800 |
Phase |
3 |
Frame |
56C |
Enclosure |
ODP |
Voltage |
230/460 |
Full Load Amps |
2.1 |
Full Load Efficiency |
86.5 |
Frame Material |
Rolled Steel |
Service Factor |
1.15 |
"C" Dimensions |
12.677 |
Mounting |
Footless |
Warranty |
1 Year |
Support Documents (pdf) |
