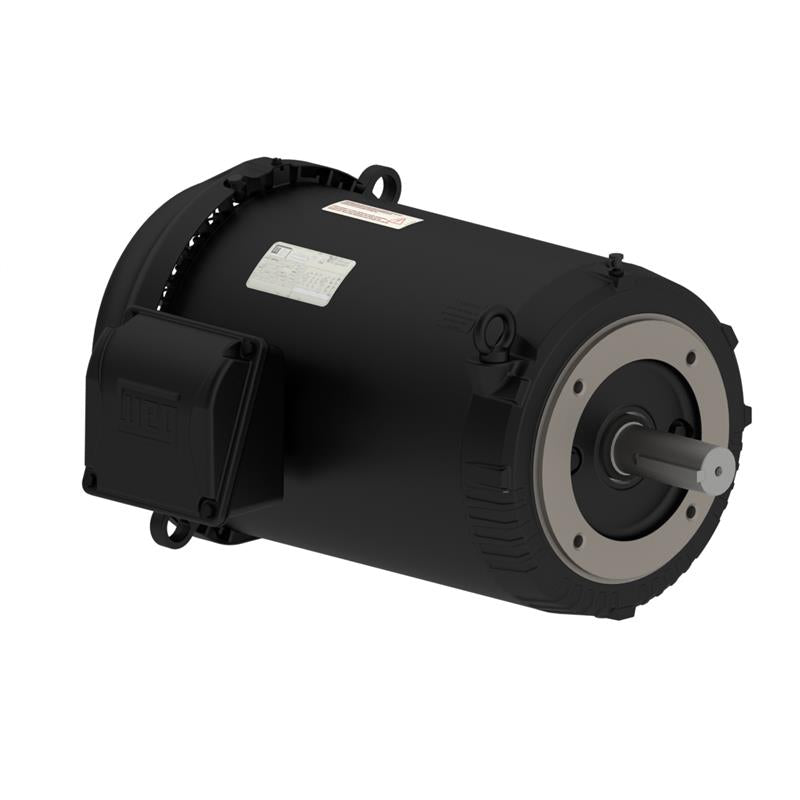

00158ET3E56CFL-S WEG Motor (1.5 HP, 1800 RPM, 3 Phase, 60 Hz, 56C Frame, 230/460V, TEFC, Footless)
00158ET3E56CFL-S WEG Motor (1.5 HP, 1800 RPM, 3 Phase, 60 Hz, 56C Frame, 230/460V, TEFC, Footless)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:00158ET3E56CFL-S
Precio habitual
$412.07 USD
Precio habitual
$463.00 USD
Precio de oferta
$412.07 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.
* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.
** Taxes may be applied after an order is placed.
WEG 00158ET3E56CFL-S, 1.5 HP, 1800 RPM, 3 Phase, 60 Hz, 56C Frame, 230/460V, TEFC, Footless
| Applications | |
| General Purpose Motor | |
| Features | |
| New ventilation system for improved thermal performance | |
| Color coded/numbered leads as standard for easy wiring | |
| Bearing cap as standard on flanged motors, optional on non-flanged | |
| IP55 Ingress Protection as standard, being appropriate for severe environments | |
| Motor frame painting system resistant to a minimum of 500 hours ASTM B117 salt spray test | |
| Suitable for VFD operation as per NEMA MG1 part 31.4.4.2 | |
| Aluminum end shields and flange | |
| Internal bolts, giving a clean surface to the motor, avoiding trapping materials and allowing easy paint job after assembly to the load, if required | |
| Double shielded ball bearings | |
|
Specifications |
|
|
Brand
|
WEG
|
|
Catalog Number
|
00158ET3E56CFL-S
|
|
Type
|
General Purpose Motor
|
|
HP
|
1.5
|
|
RPM
|
1800
|
|
Phase
|
3
|
|
Frequency
|
60 Hz
|
|
Frame
|
56C
|
|
Voltage
|
230/460
|
|
Enclosure
|
TEFC
|
|
Mounting
|
Footless
|
|
FL Efficiency
|
86.5
|
|
FL Amps
|
2
|
|
Construction
|
Rolled Steel
|
|
Service Factor
|
1.15
|
|
"C" Dimensions
|
13.504
|
|
Drive End Flange Type
|
C-Face
|
|
Warranty
|
1 Year
|
|
