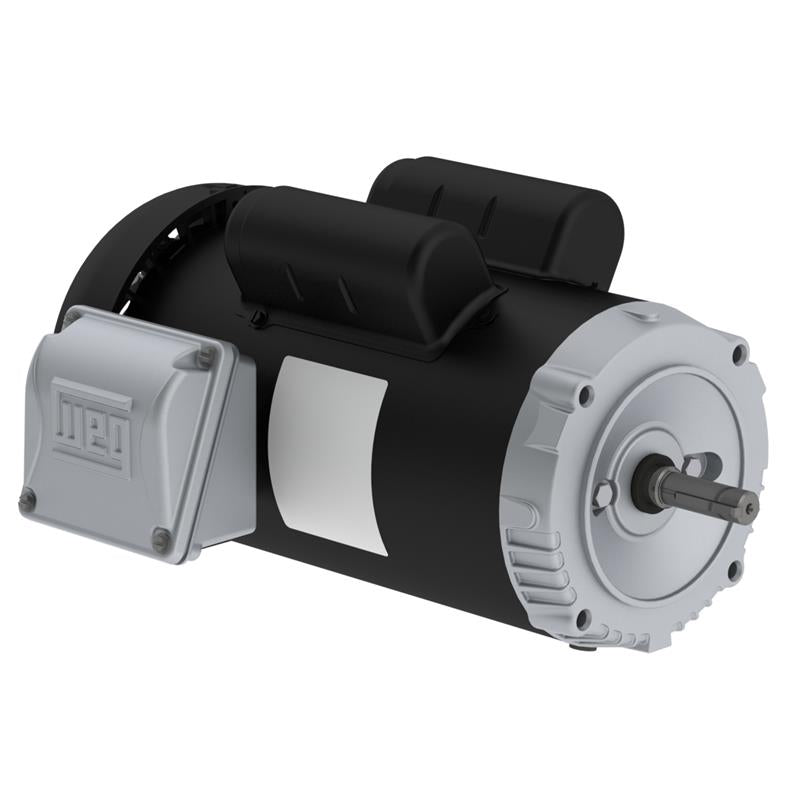

00156ES1BJPR56J-S WEG Jet Pump Motor (1.5 HP, D56 FRAME, 115/208-230 V, SINGLE PHASE, TEFC , 3480 RPM)

00156ES1BJPR56J-S WEG Jet Pump Motor (1.5 HP, D56 FRAME, 115/208-230 V, SINGLE PHASE, TEFC , 3480 RPM)

[COUNT] shoppers are looking at this right now

00156ES1BJPR56J-S

$0.00 USD
$438.00 USD $0.00 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

WEG Motor 00156ES1BJPR56J-S, 1.5 HP , 3480 RPM, D56 FRAME, 115/208-230 V , SINGLE PHASE, 60 Hz , TEFC , Jet Pump Motor
Applications
The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 Rolled Steel Single Phase motor has good thermal performance and easy installation and maintenance. Because of their high starting torque, they are particularly well-suited for heavy starting loads.
Features
Jet Pump Motor, Single Phase, Rolled Steel, Standard Efficiency, TEFC

Tech Specs

Brand
WEG Motors
Model Number
00156ES1BJPR56J-S
HP
1.5 HP
RPM
3480
FRAME
D56
VOLTAGE
115/208-230 V
PHASE
SINGLE
FREQUENCY
60 Hz
ENCLOSURE
TEFC
APPROXIMATE WEIGHT (lb)
37
FEET
NO
TERMINAL BOX
LEFT
FLANGE
FC-149
RATED CURRENT
17.1/8.80-8.55 A
LOCKED ROTOR CURRENT IL IN
6.8
LOCKED ROTOR CURRENT
116/58.1 A
LOCKED ROTOR TORQUE
2.5
BREAKDOWN TORQUE
2.5
EFFICIENCY 50
62
EFFICIENCY 75
69
EFFICIENCY 100
70
POWER FACTOR 50
0.61
POWER FACTOR 75
0.72
POWER FACTOR 100
0.8
SERVICE FACTOR
1.15 (1.00 at 208V)
INERTIA KGM2
0.00250 kgm
INERTIA SQ FT
0.05933 sq.ft.
LOCKED ROTOR TIME
6 s
NOISE LEVEL
-
ALTITUDE
1000
DUTY CYCLE
S1
AMBIENT TEMPERATURE
-20C - +40C
DEGREE OF PROTECTION
IP55
NO-LOAD CURRENT
10.8/5.40 A
INSULATION CLASS
B
FULL LOAD TORQUE NM
3.03 Nm
FULL LOAD TORQUE FT
2.23 .ft
SLIP
0.0333
DESIGN
-
TEMPERATURE RISE
80 K
BEARINGS D E
6204 2RS
BEARINGS N D E
6202 2RS
REGREASING INTERVAL D E
-
REGREASING INTERVAL N D E
-
GREASE AMOUNT D E
-
GREASE AMOUNT N D E
-
