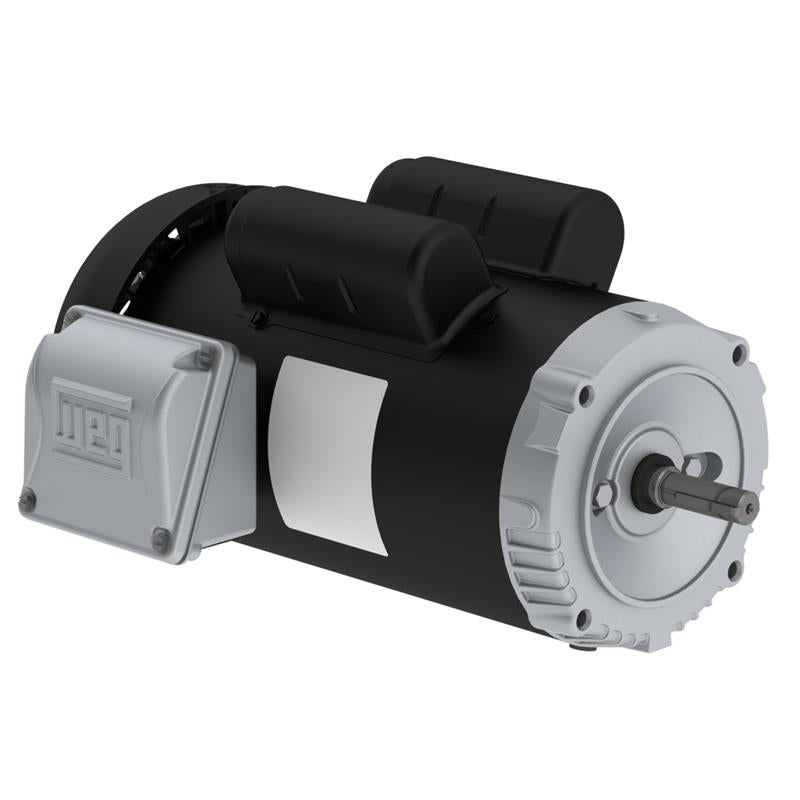

00156ES1BJPR56C-S WEG Motor, Jet Pump (1.5 HP, D56 FRAME, 115/208-230 V, SINGLE PHASE, TEFC , 3480 RPM)

00156ES1BJPR56C-S WEG Motor, Jet Pump (1.5 HP, D56 FRAME, 115/208-230 V, SINGLE PHASE, TEFC , 3480 RPM)

00156ES1BJPR56C-S

$314.83 USD
$314.83 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

WEG Motor 00156ES1BJPR56C-S, 1.5 HP , 3480 RPM, D56 FRAME, 115/208-230 V , SINGLE PHASE, 60 Hz , TEFC , Jet Pump Motor
Applications
Features
Jet Pump Motor, Single Phase, Rolled Steel, Standard Efficiency, TEFC

Tech Specs

Brand
WEG Motors
Model Number
00156ES1BJPR56C-S
HP
1.5 HP
RPM
3480
FRAME
D56
VOLTAGE
115/208-230 V
PHASE
SINGLE
FREQUENCY
60 Hz
ENCLOSURE
TEFC
APPROXIMATE WEIGHT (lb)
36
FEET
NO
TERMINAL BOX
LEFT
FLANGE
FC-149
RATED CURRENT
17.1/8.80-8.55 A
LOCKED ROTOR CURRENT IL IN
6.8
LOCKED ROTOR CURRENT
116/58.1 A
LOCKED ROTOR TORQUE
2.5
BREAKDOWN TORQUE
2.5
EFFICIENCY 50
62
EFFICIENCY 75
69
EFFICIENCY 100
70
POWER FACTOR 50
0.61
POWER FACTOR 75
0.72
POWER FACTOR 100
0.8
SERVICE FACTOR
1.15 (1.00 at 208V)
INERTIA KGM2
0.00250 kgm
INERTIA SQ FT
0.05933 sq.ft.
LOCKED ROTOR TIME
6 s
NOISE LEVEL
-
ALTITUDE
1000
DUTY CYCLE
S1
AMBIENT TEMPERATURE
-20C - +40C
DEGREE OF PROTECTION
IP55
NO-LOAD CURRENT
10.8/5.40 A
INSULATION CLASS
B
FULL LOAD TORQUE NM
3.03 Nm
FULL LOAD TORQUE FT
2.23 .ft
SLIP
0.0333
DESIGN
-
TEMPERATURE RISE
80 K
BEARINGS D E
6204 2RS
BEARINGS N D E
6202 2RS
REGREASING INTERVAL D E
-
REGREASING INTERVAL N D E
-
GREASE AMOUNT D E
-
GREASE AMOUNT N D E
-
