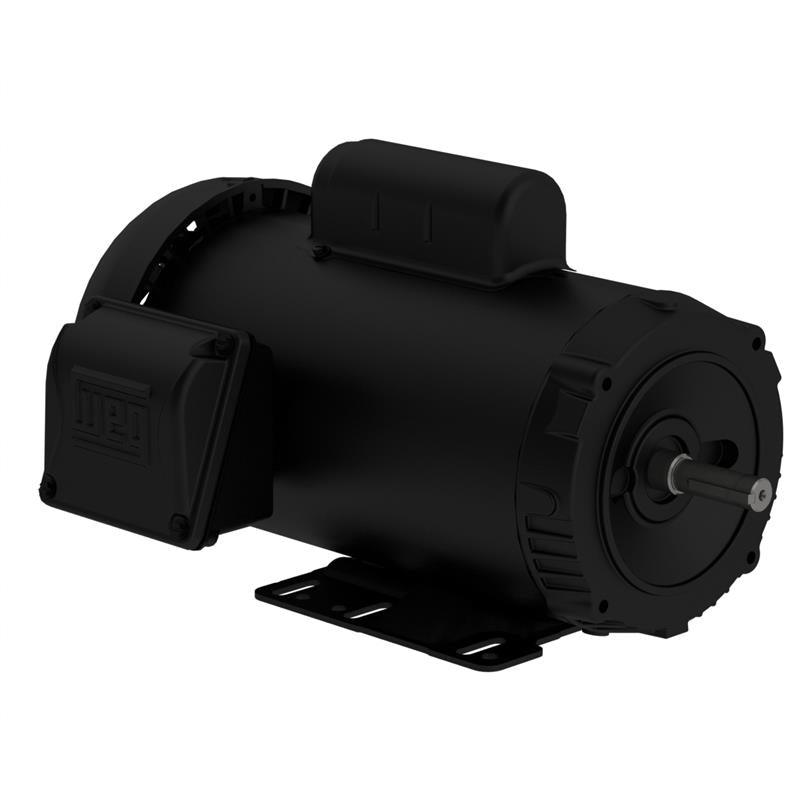

00156ES1B56C-S WEG General Purpose C-Face Motor (1.5 HP, 1PH, 115/208-230V)

00156ES1B56C-S WEG General Purpose C-Face Motor (1.5 HP, 1PH, 115/208-230V)

00156ES1B56C-S

$330.85 USD
$330.85 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

WEG 00156ES1B56C-S, General Purpose C-Face Motor Type, 1.5 HP, 3600 RPM, 1 Phase, 60 Hz, 56C Frame, Foot-mounted, TEFC, 115/208-230V

Applications
High Starting Torque makes these motors ideal for a wide range of applications.
Features
High Starting Torque
182T frames and up are cast iron for severe duty
NPT Threaded Holes in Terminal Box
Class F insulation
V-ring Seals
Class F insulation

Specifications

Brand
WEG
Catalog Number
00156ES1B56C-S
Type
General Purpose C-Face Motor
Series
Single Phase Motor
HP
1.5
RPM
3600
Phase
1
Hertz
60
Frame
56C
Mounting
Foot-mounted
Enclosure
TEFC
Voltage
115/208-230
Full Load Amps
6.6
Full Load Efficiency
75
Frame Material
Rolled Steel
Warranty
1 Year

Support Documents (pdf)
