WEG

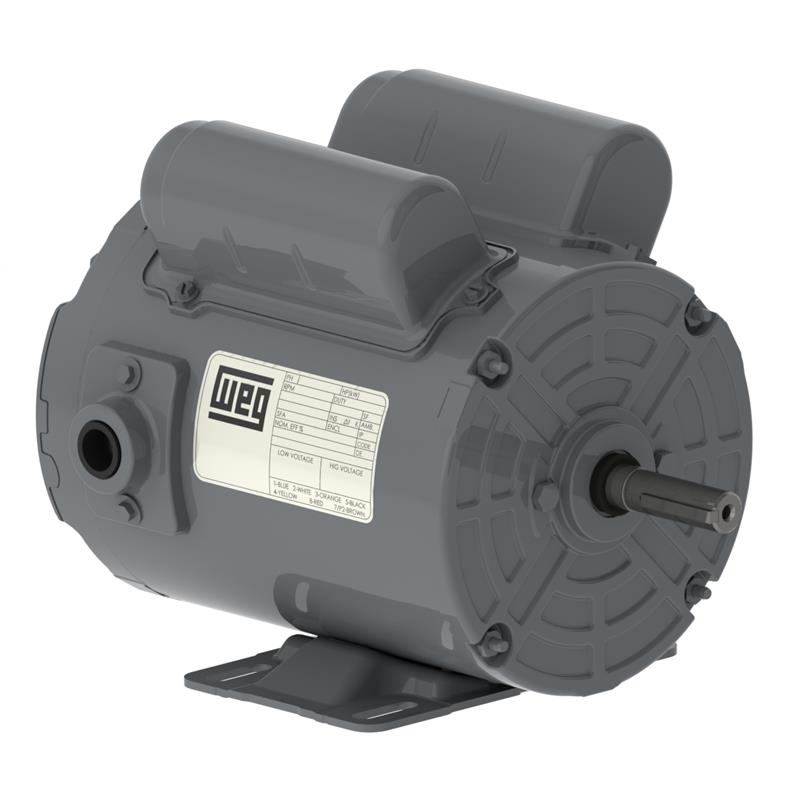

00156AS1RAF143TZ-S WEG Aeration Fan (1.5 HP, 1.1 kW, 3600 RPM, 143/5TZ Frame, 115/230 Voltage, Single Phase, TEAO)
00156AS1RAF143TZ-S WEG Aeration Fan (1.5 HP, 1.1 kW, 3600 RPM, 143/5TZ Frame, 115/230 Voltage, Single Phase, TEAO)
[COUNT] shoppers are looking at this right now
No reviews
SKU:00156AS1RAF143TZ-S
Precio habitual
$572.27 USD
Precio habitual
$643.00 USD
Precio de oferta
$572.27 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
WEG 00156AS1RAF143TZ-S, Farm Duty Motor Type, Aeration Fan Motor Series, 1.5 HP, 1.1 kW, 3600 RPM, 143/5TZ Frame, 115/230 Voltage, Single Phase, TEAO
| Applications | |
| For more information on WEG Aeration Fans, call our sales team at 631-342-1171 | |
| Features |
Specifications | |
Brand |
WEG |
Catalog Number |
00156AS1RAF143TZ-S |
Type |
Farm Duty Motor |
Series |
Aeration Fan Motor |
HP |
1.5 |
kW |
1.1 |
RPM |
3600 |
Frame |
143/5TZ |
Voltage |
115/230 |
Service Factor |
1 .15 |
Phase |
Single |
Enclosure |
TEAO |
FL Amps @ High |
6 .60 |
FL . Eff (%) |
75 .0 |
"C" Dimension (in) |
12 .413 |
Warranty |
1 Year |
Support Documents (pdf) |
