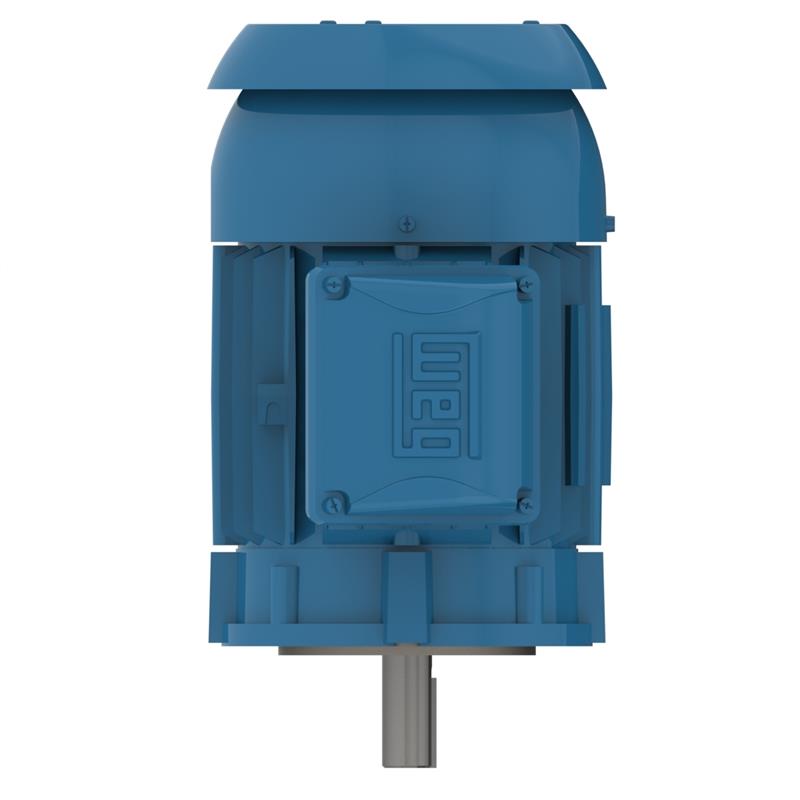

00152ET3ER182TC-W22 WEG Motor (1.5 HP, 1200 RPM, 3 Phase, 60Hz, 182TC Frame, 230/460V, TEFC, Footless)

00152ET3ER182TC-W22 WEG Motor (1.5 HP, 1200 RPM, 3 Phase, 60Hz, 182TC Frame, 230/460V, TEFC, Footless)

[COUNT] shoppers are looking at this right now

00152ET3ER182TC-W22

$726.24 USD
$816.00 USD $726.24 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

WEG 00152ET3ER182TC-W22, 1.5 HP, 1200 RPM, 3 Phase, 60Hz, 182TC Frame, 230/460V, TEFC, Footless

Applications
General Purpose Motor
Features
F1 mounted (cast iron frames are F2 convertible). Frames 447T and up can easily be F2 converted by simply rotating the terminal box adapter.
Class F insulation
Efficiency levels: High Efficiency (EPAct) and NEMA Premium
IP55 standard, IP56 optional
F1 mount as standard
Aluminum endshields
Cast Iron flanges for improved strength (182/4TC and larger)
Internal bolts, giving a clean surface to the motor, avoiding trapping materials and allowing easy paint job after assembly to the load if required
Double shielded ball bearings on frames 56 to 213/5T. Optional double sealed ball bearings and/or bearing cap

Specifications

Brand
WEG
Catalog Number
00152ET3ER182TC-W22
Type
General Purpose Motor
HP
1.5
RPM
1200
Phase
3
Frequency
60Hz
Frame
182TC
Voltage
230/460
Enclosure
TEFC
Mounting
Footless
FL Efficiency
87.5
FL Amps
2.54
Construction
Cast Iron
Service Factor
1.25
"C" Dimensions
16.197
Drive End Flange Type
C-Face
Warranty
1 Year
