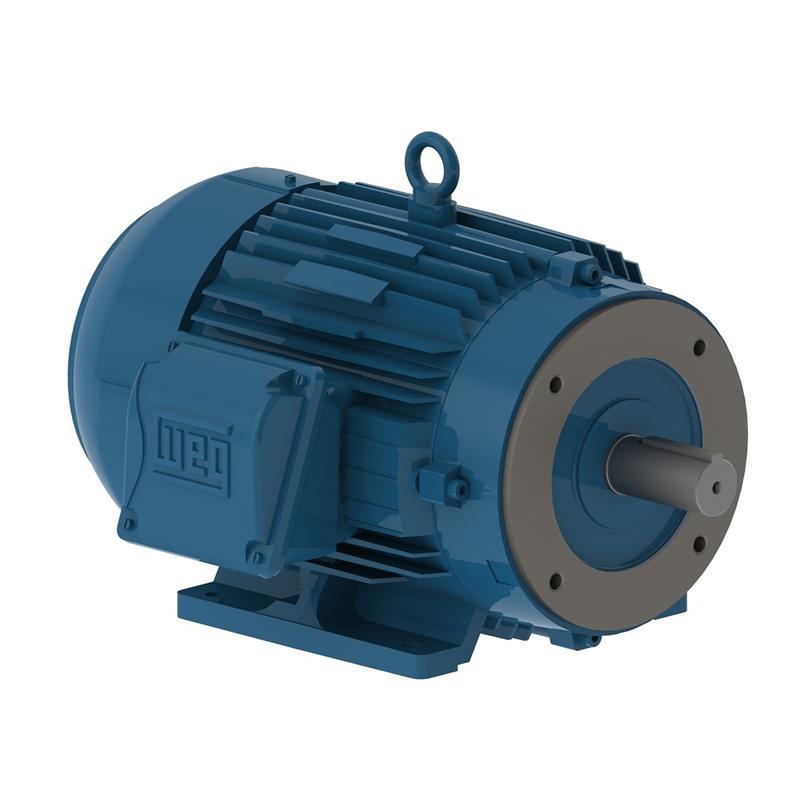

00152ET3E182TC-W22 WEG General Purpose Motor (1.5 HP, 6 Pole, 182/4TC FRAME, 230/460 Volt, 3 Phase, TEFC Enclosure, 1165 RPM, Foot Mounted)
00152ET3E182TC-W22 WEG General Purpose Motor (1.5 HP, 6 Pole, 182/4TC FRAME, 230/460 Volt, 3 Phase, TEFC Enclosure, 1165 RPM, Foot Mounted)
[COUNT] shoppers are looking at this right now
SKU:00152ET3E182TC-W22
Precio habitual
$704.88 USD
Precio habitual
$792.00 USD
Precio de oferta
$704.88 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
WEG Motor 00152ET3E182TC-W22, 1.5 HP, RPM: 1165, FRAME: 182TC, 460 V, THREE PHASE: 60 Hz, : TEFC, WEG General Purpose Motor
| Applications |
| Chemical plants, Compressors, Pulp and paper mills, Crushers, Refineries, Pumps, Steel mills, Fans, Cement mills, Packaging equipment |
| Features |
| WEG General Purpose Motors, 3-Phase, Cast Iron, NEMA Premium, TEFC |
|
Tech Specs |
|
|
Brand
|
WEG Motors
|
|
Model Number
|
00152ET3E182TC-W22
|
|
HP
|
1.5 HP
|
|
RPM
|
1165
|
|
FRAME
|
182/4TC
|
|
VOLTAGE
|
230/460 V
|
|
PHASE
|
THREE
|
|
FREQUENCY
|
60 Hz
|
|
ENCLOSURE
|
TEFC
|
|
APPROXIMATE WEIGHT (lb)
|
70
|
|
FEET
|
YES
|
|
TERMINAL BOX
|
LEFT
|
|
FLANGE
|
FC-184
|
|
RATED CURRENT
|
2.39 A
|
|
LOCKED ROTOR CURRENT IL IN
|
8
|
|
LOCKED ROTOR CURRENT
|
19.1 A
|
|
LOCKED ROTOR TORQUE
|
3.2
|
|
BREAKDOWN TORQUE
|
4
|
|
EFFICIENCY 50
|
84
|
|
EFFICIENCY 75
|
86.5
|
|
EFFICIENCY 100
|
87.5
|
|
POWER FACTOR 50
|
0.45
|
|
POWER FACTOR 75
|
0.56
|
|
POWER FACTOR 100
|
0.66
|
|
SERVICE FACTOR
|
1.25
|
|
INERTIA KGM2
|
0.02056 kgm
|
|
INERTIA SQ FT LB
|
0.48789 sq.ft.
|
|
LOCKED ROTOR TIME
|
16 s
|
|
NOISE LEVEL
|
52 dB(A)
|
|
ALTITUDE
|
1000
|
|
DUTY CYCLE
|
S1
|
|
AMBIENT TEMPERATURE
|
-20C - +40C
|
|
DEGREE OF PROTECTION
|
IP55
|
|
NO-LOAD CURRENT
|
1.63 A
|
|
INSULATION CLASS
|
F
|
|
FULL LOAD TORQUE NM
|
9.04 Nm
|
|
FULL LOAD TORQUE LB FT
|
6.67 .ft
|
|
SLIP
|
0.0292
|
|
DESIGN
|
B
|
|
TEMPERATURE RISE
|
80 K
|
|
BEARINGS D E
|
6207 ZZ
|
|
BEARINGS N D E
|
6206 ZZ
|
|
REGREASING INTERVAL D E
|
-
|
|
REGREASING INTERVAL N D E
|
-
|
|
GREASE AMOUNT D E
|
-
|
|
GREASE AMOUNT N D E
|
-
|
|
|
|
|
|
|
