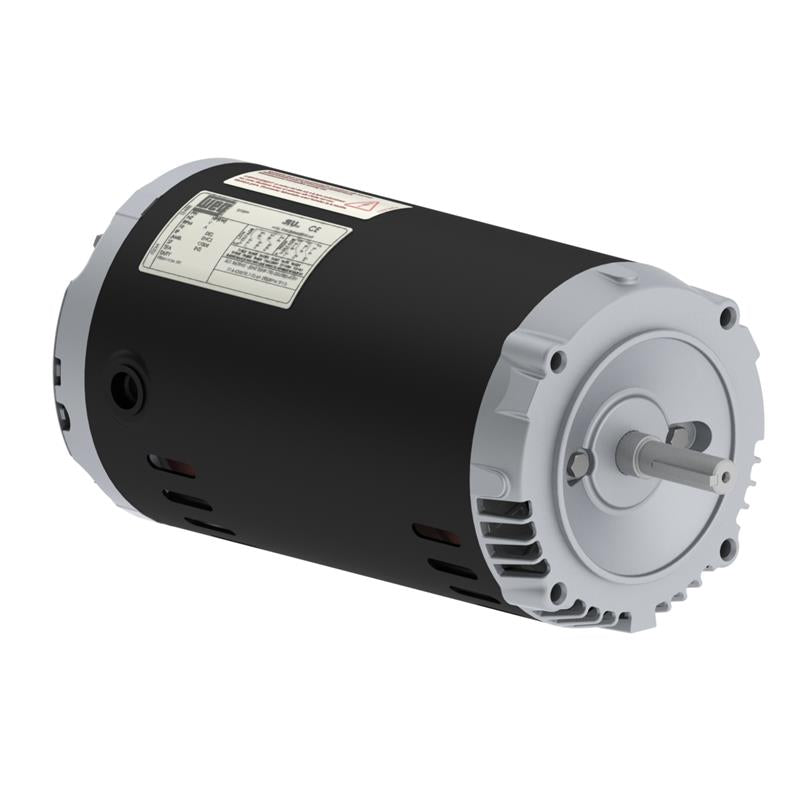

00136OT3E56CFL-S WEG Motor (1 HP, 3600 RPM, 3 Phase, 56C, ODP, 230/460 V, Footless)
00136OT3E56CFL-S WEG Motor (1 HP, 3600 RPM, 3 Phase, 56C, ODP, 230/460 V, Footless)
SKU:00136OT3E56CFL-S
Precio habitual
$279.11 USD
Precio habitual
Precio de oferta
$279.11 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
No se pudo cargar la disponibilidad de retiro
WEG 00136OT3E56CFL-S, 1 HP, 3600 RPM, 3 Phase, 56C, ODP, 230/460 V, Footless
| Applications | |
| WEG Open Drip Proof (ODP) motor is a general purpose line designed for environments where dirt and moisture are minimal. | |
| Features | |
| Rated Output: 0.25 to 25 HP | |
| Number of Poles: 2 through 6 | |
| Class F insulation | |
| Frame Sizes: NEMA 56 to 254/6T | |
| Efficiency levels: NEMA Premium | |
| Frequency: 60 Hz (dual rated 50 Hz 190-220/380-415V) | |
| IP21 standard | |
| F1 mount as standard | |
| Foot mount / C-face / Footless availability | |
| Double shielded ball bearings on frames 56 to 213/5T. Optional double sealed ball bearings and/or bearing cap | |
| Aluminum endshields | |
Specifications | |
Brand |
WEG |
Catalog Number |
00136OT3E56CFL-S |
Type |
General Purpose C-Face Motor |
HP |
1 |
RPM |
3600 |
Phase |
3 |
Frame |
56C |
Enclosure |
ODP |
Voltage |
230/460 |
Full Load Amps |
1.51 |
Full Load Efficiency |
77 |
Frame Material |
Rolled Steel |
Service Factor |
1.25 |
"C" Dimensions |
10.709 |
Mounting |
Footless |
Warranty |
1 Year |
