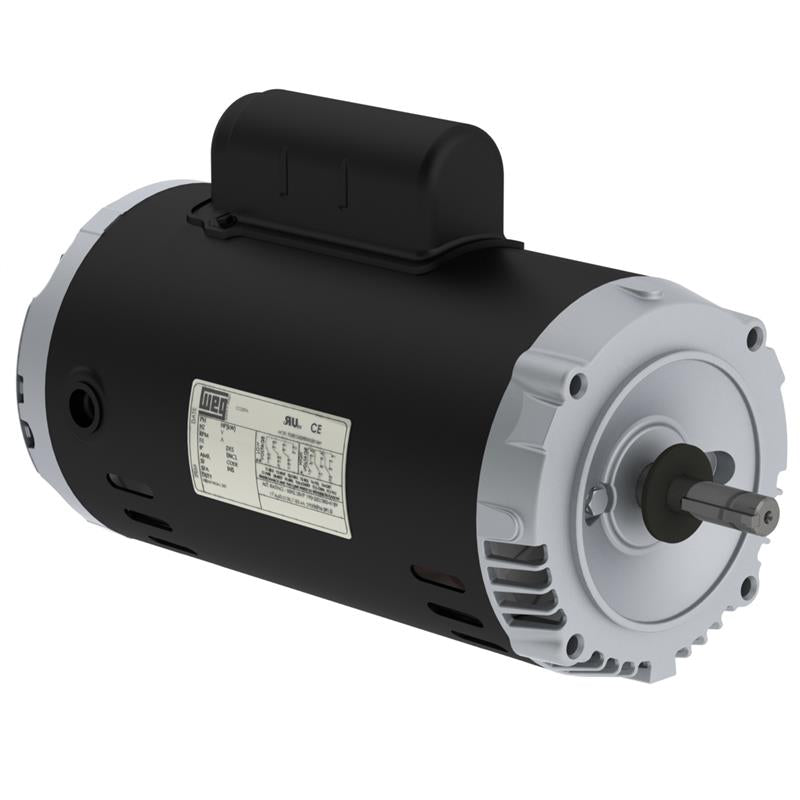

00136OS1BJPR56J-S WEG Jet Pump Motor (1 HP, 3600 RPM, ODP Enclosure, Single Phase, 115/208-230 Voltage)

WEG 00136OS1BJPR56J-S, Jet Pump Motor Type, 1 HP, 3600 RPM, ODP Enclosure, Single Phase, 115/208-230 Voltage,

Applications
These versatile motors have the torque and durability for the toughest commercial applications, yet are also economical choices for residential applications. Available with or without base and in J and C configurations
Features
Insulation class B
Sealed ball bearings (Drive end)
NEMA Service factor

Specifications
Brand	WEG
Catalog Number	00136OS1BJPR56J-S
Type	Jet Pump Motor
HP	1
RPM	3600
Enclosure	ODP
Phase	Single
Voltage	115/208-230
Frame	56J
Approx. Weight (lbs)	29
Service Factor	1 .40
FL Amps @ High	6 .40
FL Eff (%)	66 .3
C Dimension (in)	12 .008
Mounting	Footless
Frame Material	Rolled Steel
Hz	60
Mounting	F1

Support Documents (pdf)
