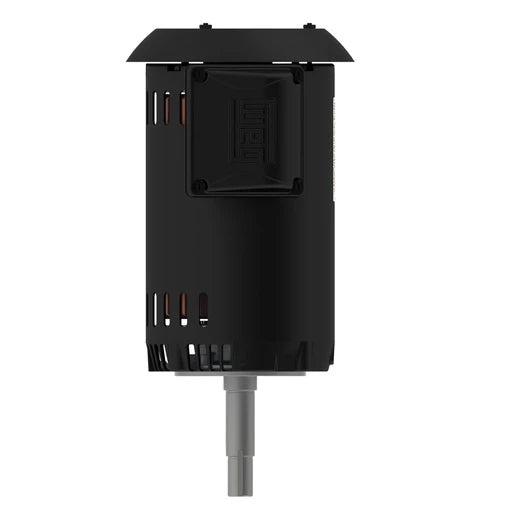

00118OT3E143JMV-S WEG Pump Motor (Rolled Steel, JM Pump, NEMA Premium Efficiency, 1 HP, 4P, 143/5JM, 3Phase, 230/460//190-220/380-415 V, 60 Hz, IC01 - ODP - Footless)

00118OT3E143JMV-S WEG Pump Motor (Rolled Steel, JM Pump, NEMA Premium Efficiency, 1 HP, 4P, 143/5JM, 3Phase, 230/460//190-220/380-415 V, 60 Hz, IC01 - ODP - Footless)

👁️ [COUNT] People are currently viewing this product.

00118OT3E143JMV-S

$481.49 USD
$541.00 USD $481.49 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

If you are unable to find the price for this item on our page, please contact us directly for a quote.

Some products require you to ADD TO CART to see the price.

Tax

NY, NJ and CT will be charged tax on most orders.

Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.

* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.

** Taxes may be applied after an order is placed.

Rolled Steel JM Pump NEMA Premium Efficiency 1 HP 4P 143/5JM 3Ph 230/460//190-220/380-415 V 60 Hz IC01 - ODP - Footless

Frame 143/5JM
Output 1 HP (0.75 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1760 rpm
Slip 2.22 %
Rated voltage 230/460 V
Rated current 3.02/1.51 A
L. R. Amperes 24.2/12.1 A
LRC 8.0x(Code L)
No load current 1.92/0.958 A
Rated torque 2.98 ft.lb
Locked rotor torque 290 %
Breakdown torque 360 %
Locked rotor time 39s (cold) 22s (hot)
