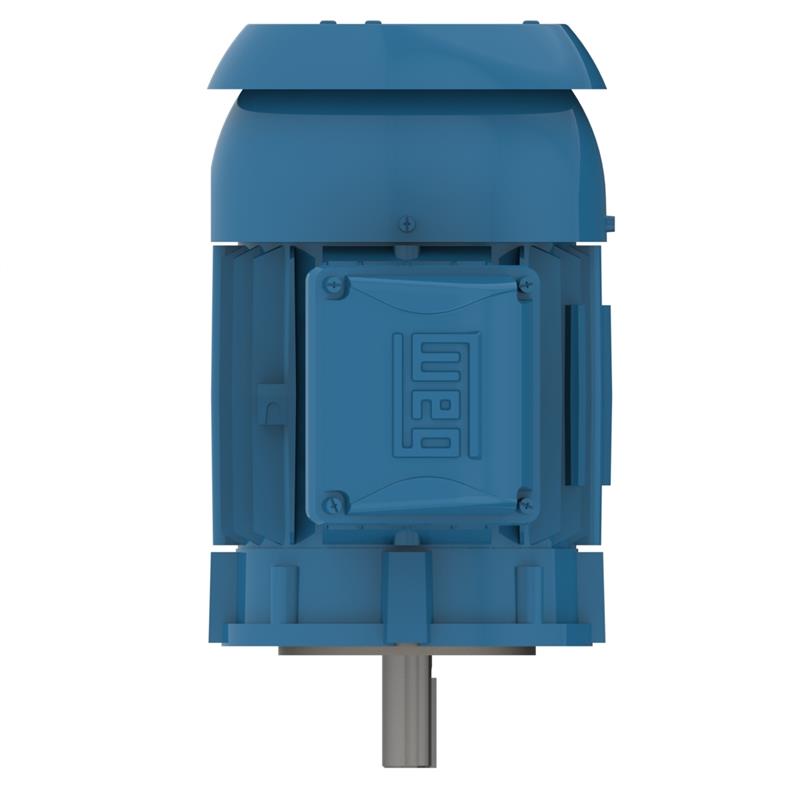

00118ET3ER143TC-W22 WEG Motor (1 HP, 1800 RPM, 3 Phase, 60Hz, 143TC Frame, 230/460V, TEFC, Footless)

00118ET3ER143TC-W22 WEG Motor (1 HP, 1800 RPM, 3 Phase, 60Hz, 143TC Frame, 230/460V, TEFC, Footless)

00118ET3ER143TC-W22

$416.85 USD
$416.85 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

WEG 00118ET3ER143TC-W22, 1 HP, 1800 RPM, 3 Phase, 60Hz, 143TC Frame, 230/460V, TEFC, Footless

Applications
General Purpose Motor
Features
F1 mounted (cast iron frames are F2 convertible). Frames 447T and up can easily be F2 converted by simply rotating the terminal box adapter.
Class F insulation
Efficiency levels: High Efficiency (EPAct) and NEMA Premium
IP55 standard, IP56 optional
F1 mount as standard
Aluminum endshields
Cast Iron flanges for improved strength (182/4TC and larger)
Internal bolts, giving a clean surface to the motor, avoiding trapping materials and allowing easy paint job after assembly to the load if required
Double shielded ball bearings on frames 56 to 213/5T. Optional double sealed ball bearings and/or bearing cap

Specifications

Brand
WEG
Catalog Number
00118ET3ER143TC-W22
Type
General Purpose Motor
HP
1
RPM
1800
Phase
3
Frequency
60Hz
Frame
143TC
Voltage
230/460
Enclosure
TEFC
Mounting
Footless
FL Efficiency
85.5
FL Amps
1.47
Construction
Cast Iron
Service Factor
1.25
"C" Dimensions
13.065
Drive End Flange Type
C-Face
Warranty
1 Year
