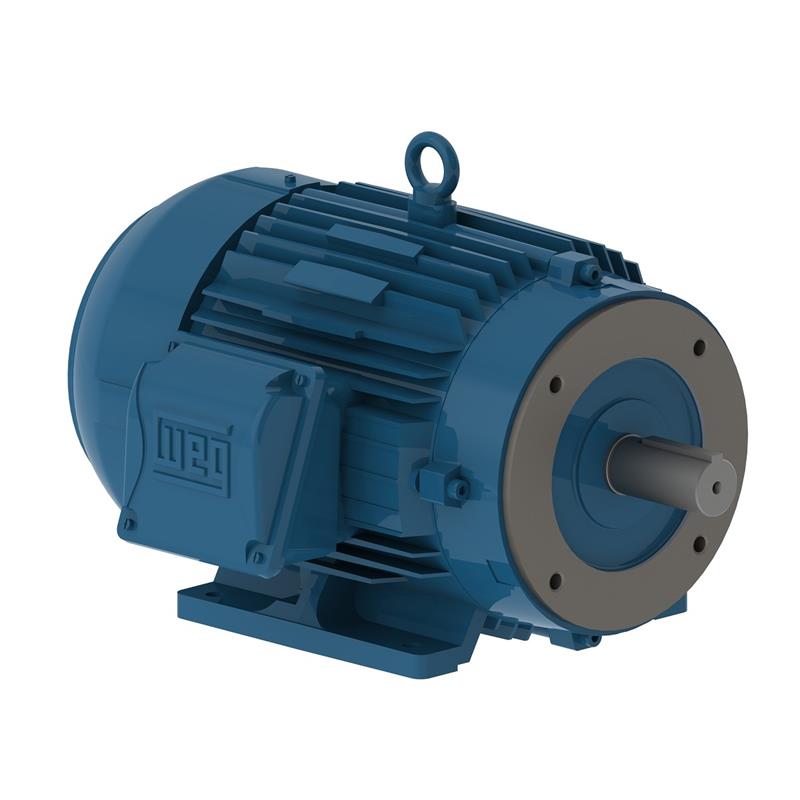

00118ET3E143TC-W22 WEG Motor (1 HP, 143TC FRAME, 230/460 V, THREE PHASE, TEFC , 1760 RPM)

WEG Motor 00118ET3E143TC-W22, 1 HP, RPM: 1760, FRAME: 143TC, 230/460 V, THREE PHASE: 60 Hz, : TEFC, WEG General Purpose Motor

Applications

Chemical plants, Compressors, Pulp and paper mills, Crushers, Refineries, Pumps, Steel mills, Fans, Cement mills, Packaging equipment

Features

WEG General Purpose Motors, 3-Phase, Cast Iron, NEMA Premium, TEFC

Tech Specs
Brand	WEG Motors
Model Number	00118ET3E143TC-W22
HP	1 HP
RPM	1760
FRAME	143TC
VOLTAGE	230/460 V
PHASE	THREE
FREQUENCY	60 Hz
ENCLOSURE	TEFC
APPROXIMATE WEIGHT (lb)	41
FEET	YES
TERMINAL BOX	LEFT
FLANGE	FC-149
RATED CURRENT	1.41 A
LOCKED ROTOR CURRENT IL IN	8.4
LOCKED ROTOR CURRENT	11.8 A
LOCKED ROTOR TORQUE	2.3
BREAKDOWN TORQUE	3.5
EFFICIENCY 50	80
EFFICIENCY 75	84
EFFICIENCY 100	85.5
POWER FACTOR 50	0.6
POWER FACTOR 75	0.7
POWER FACTOR 100	0.78
SERVICE FACTOR	1.25
INERTIA KGM2	0.00494 kgm
INERTIA SQ FT LB	0.11723 sq.ft.
LOCKED ROTOR TIME	18 s
NOISE LEVEL	51 dB(A)
ALTITUDE	1000
DUTY CYCLE	S1
AMBIENT TEMPERATURE	-20C - +40C
DEGREE OF PROTECTION	IP55
NO-LOAD CURRENT	0.770 A
INSULATION CLASS	F
FULL LOAD TORQUE NM	3.99 Nm
FULL LOAD TORQUE LB FT	2.94 .ft
SLIP	0.0222
DESIGN	B
TEMPERATURE RISE	80 K
BEARINGS D E	6205 ZZ
BEARINGS N D E	6204 ZZ
REGREASING INTERVAL D E	-
REGREASING INTERVAL N D E	-
GREASE AMOUNT D E	-
GREASE AMOUNT N D E	-
