WEG

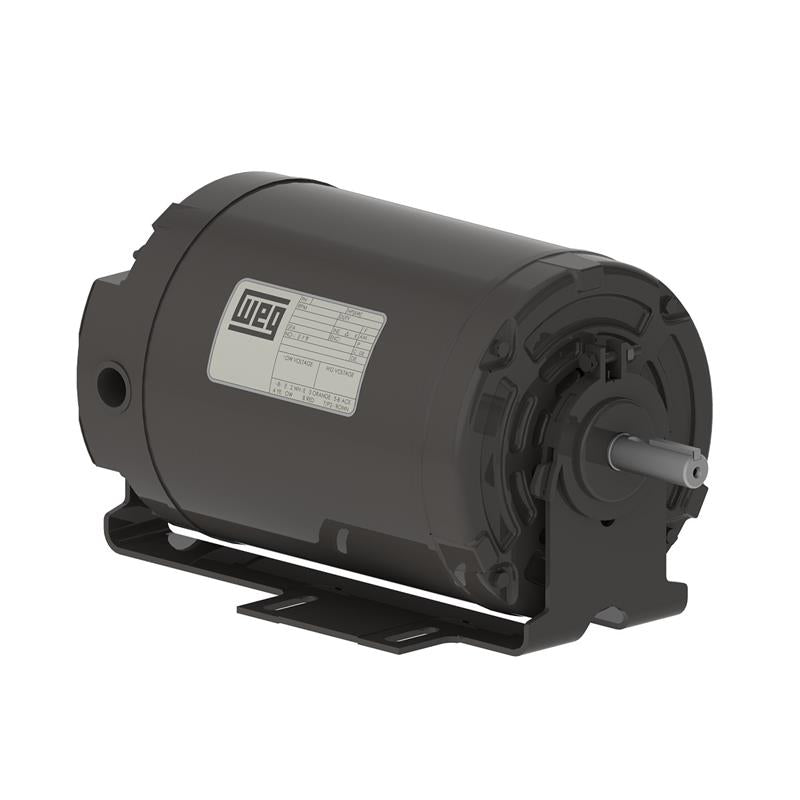

00118ES1BRBPFD56 WEG Motor (1 HP, 1800 RPM, 1 Phase, D56 Frame, TEAO Enclosure, 115/208-230 Voltage)

00118ES1BRBPFD56 WEG Motor (1 HP, 1800 RPM, 1 Phase, D56 Frame, TEAO Enclosure, 115/208-230 Voltage)

00118ES1BRBPFD56

$317.01 USD
$317.01 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

WEG 00118ES1BRBPFD56, 1 HP, 0.75 KW, 1800 RPM, 1 Phase, D56 Frame, TEAO Enclosure, 115/208-230 Voltage

Applications
WEG offers a complete line of TEFC Farm Duty motors providing high starting torque for the most demanding applications. Standard features such as v-rings provide versatility for indoor and outdoor applications. Overload protection available in all frames protects the motor from extreme overloads and offers maximum safety to operators.
Features
Double shielded ball bearings
Insulation class B
Automatic Reset Thermal Overload Protector

Specifications

Brand
WEG
Catalog Number
00118ES1BRBPFD56
Type
Farm Duty Motors
HP
1
KW
0.75
RPM
1800
Phase
1
C Dimension
12.992
Service Factor
1.15
Frame
D56
Enclosure
TEAO
Full Load Amps
7
Mount
Resilient Base
Voltage
115/208-230
Warranty
1 Year
