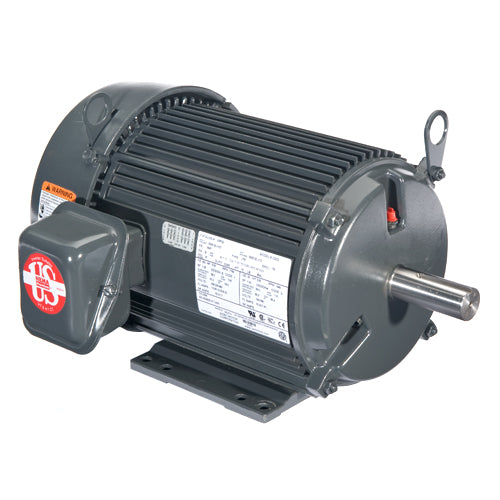

U20R9C U.S. Motors Definite Purpose UNIMOUNT Multispeed Motor (20 HP, 460 V, 3 Phase)
U20R9C U.S. Motors Definite Purpose UNIMOUNT Multispeed Motor (20 HP, 460 V, 3 Phase)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:U20R9C
Regular price
$3,982.90 USD
Regular price
$0.00 USD
Sale price
$3,982.90 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
* If you are tax exempt, email your tax form to Sales@kgpowersystems.com
U.S. Motors U20R9C, Definite Purpose UNIMOUNT Multispeed Motor Type, 20 (10) HP (HP-Low), 1800/900 (1) RPM/RPM-Low, 460 Voltage, Three Phase, 286T Frame, Constant Torque,
| Applications | |
| US Motors Definite Purpose Three Phase, UNIMOUNT Totally Enclosed Fan Cooled (TEFC) Multi-Speed Motor. For applications requiring more than one standard speed. | |
| Features | |
| Class F Insulation | |
| Extruded Aluminum Frame (140: Rolled Steel) | |
| Aluminum End Shields With Steel Bearing Inserts | |
| Regreasable Bearings 250 Frame & Up | |
| Double Shielded Bearings | |
| Removable Base 180 Frame & Up | |
| Lifting Provisions 180 Frame & Up | |
| Conversion Kits: C&D Flanges | |
| 1.0 Service Factor Or Higher | |
| Variable Torque, 1800/900 RPM, One Winding | |
Specifications | |
Brand |
U.S. Motors |
Catalog Number |
U20R9C |
Type |
Definite Purpose UNIMOUNT Multispeed Motor |
HP (HP-Low) |
20 (10) |
RPM/RPM-Low |
1800/900 (1) |
Voltage |
460 |
Phase |
Three |
Frame |
286T |
SF |
1.15 |
"C" Dim. (inches) |
28.3 |
Full Load Eff. |
85.5 |
Full load Amps |
24.7 |
Torque |
Constant |
Winding |
One |
Enclosure |
TEFC |
Notes |
See Support Documents |
Support Documents (pdf) |
