Thomson Technology

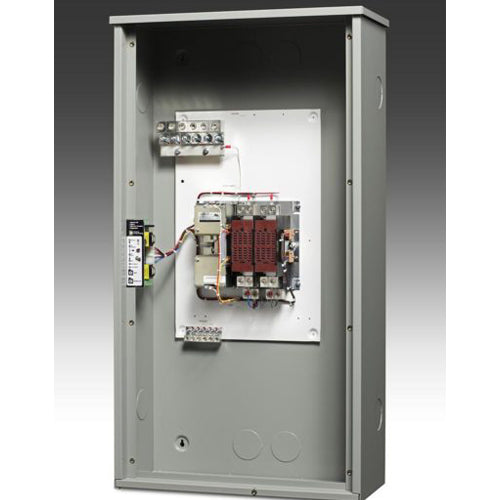

TS912A0200A Thomson Technology Transfer Switch (STANDARD ATS TYPE, 240V MAX VOLTAGE, 1 QTY PER PHASE, TS910 Automatic Transfer Switch Series)
TS912A0200A Thomson Technology Transfer Switch (STANDARD ATS TYPE, 240V MAX VOLTAGE, 1 QTY PER PHASE, TS910 Automatic Transfer Switch Series)
SKU:TS912A0200A
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.
Couldn't load pickup availability
Thomson Technology TS912A0200A, TS910 Automatic Transfer Switch Series, STANDARD ATS TYPE, 240V MAX VOLTAGE, 1 QTY PER PHASE,
| Applications |
| Thomson Technology TS 910 Automatic Transfer Switches employ a power contactor switching unit with a microprocessor based controller to automatically start a generator and transfer system load to the generator supply in the event of a utility supply failure. System load is automatically re-transferred back to the utility supply following restoration of the utility power source to within normal operating limits. |
| Features |
| Normal Operation Status LED Lights: Load on Utility & Load on Generator, Utility & Generator Source Available, Engine Start Activated, Load Shed Activated |
| Diagnostic LEDs: System OK, Alarm, Wait For Transfer, Diagnostic |
| USB Port Factory Programming/Diagnostic |
| Single Phase and Three Phase Voltage sensing on Utility & Generator |
| Generator AC frequency sensing |
| Utility under voltage control set point 70% dropout (fixed) |
| Generator Set points: under voltage 70% dropout (fixed), under frequency 90% pick-up (fixed) |
| Engine warm-up timer (Selectable 10 sec, 30 sec, 60 sec) |
| Utility return timer (Selectable 10 sec, 60 sec, 120 sec) |
| Engine start timer (Selectable 3 sec, 6 sec, 10 sec) |
| Engine cool down timer (Selectable 60, 120, 300 sec) |
| Integrated Programmable Generator Exercise Timer with easy to configure 7, 14 or 28 day, On-load or Off-load Programmability, initiate pushbutton & light |
| Local utility power fail simulation test pushbutton & LED, front faceplate mounted |
| Engine start contact (5A, 120/240VAC resistive max.) |
| Load Shed contact (5A, 120/240VAC resistive max.) |
| Alarm Output (100ma, 24Vdc) |
Specifications | |
Brand |
Thomson Technology |
Catalog Number |
TS912A0200A |
Type |
Transfer Switch |
Series |
TS910 Automatic Transfer Switch |
ATS TYPE |
STANDARD |
POLES |
2 |
MAX VOLTAGE |
240V |
AMPERAGE |
200A |
SHORT CIRCUIT CURRENT |
10kA |
HEIGHT INCHES |
27 1/8 |
WIDTH INCHES |
18 7/8 |
DEPTH INCHES |
8 1/4 |
QTY PER PHASE |
1 |
TERMINAL RATING RANGE |
#6 - 250mcm |
Warranty |
1 Year |
Notes |
See Support Documents |
Support Documents (pdf) |
