Thomson Technology

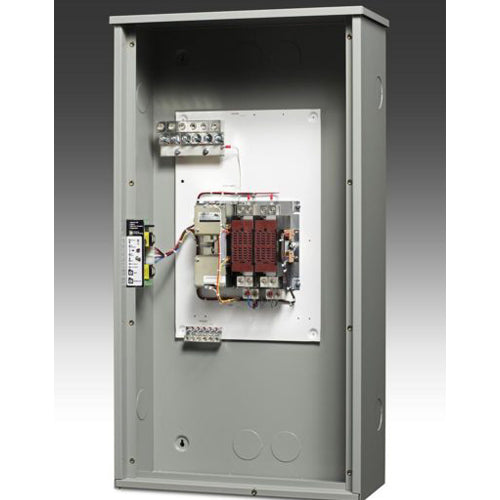

TS912A0200A Thomson Technology Transfer Switch (STANDARD ATS TYPE, 240V MAX VOLTAGE, 1 QTY PER PHASE, TS910 Automatic Transfer Switch Series)
TS912A0200A Thomson Technology Transfer Switch (STANDARD ATS TYPE, 240V MAX VOLTAGE, 1 QTY PER PHASE, TS910 Automatic Transfer Switch Series)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:TS912A0200A
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Don't see the price?
Don't see the price?
If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.
Thomson Technology TS912A0200A, TS910 Automatic Transfer Switch Series, STANDARD ATS TYPE, 240V MAX VOLTAGE, 1 QTY PER PHASE,
| Applications |
| Thomson Technology TS 910 Automatic Transfer Switches employ a power contactor switching unit with a microprocessor based controller to automatically start a generator and transfer system load to the generator supply in the event of a utility supply failure. System load is automatically re-transferred back to the utility supply following restoration of the utility power source to within normal operating limits. |
| Features |
| Normal Operation Status LED Lights: Load on Utility & Load on Generator, Utility & Generator Source Available, Engine Start Activated, Load Shed Activated |
| Diagnostic LEDs: System OK, Alarm, Wait For Transfer, Diagnostic |
| USB Port Factory Programming/Diagnostic |
| Single Phase and Three Phase Voltage sensing on Utility & Generator |
| Generator AC frequency sensing |
| Utility under voltage control set point 70% dropout (fixed) |
| Generator Set points: under voltage 70% dropout (fixed), under frequency 90% pick-up (fixed) |
| Engine warm-up timer (Selectable 10 sec, 30 sec, 60 sec) |
| Utility return timer (Selectable 10 sec, 60 sec, 120 sec) |
| Engine start timer (Selectable 3 sec, 6 sec, 10 sec) |
| Engine cool down timer (Selectable 60, 120, 300 sec) |
| Integrated Programmable Generator Exercise Timer with easy to configure 7, 14 or 28 day, On-load or Off-load Programmability, initiate pushbutton & light |
| Local utility power fail simulation test pushbutton & LED, front faceplate mounted |
| Engine start contact (5A, 120/240VAC resistive max.) |
| Load Shed contact (5A, 120/240VAC resistive max.) |
| Alarm Output (100ma, 24Vdc) |
Specifications | |
Brand |
Thomson Technology |
Catalog Number |
TS912A0200A |
Type |
Transfer Switch |
Series |
TS910 Automatic Transfer Switch |
ATS TYPE |
STANDARD |
POLES |
2 |
MAX VOLTAGE |
240V |
AMPERAGE |
200A |
SHORT CIRCUIT CURRENT |
10kA |
HEIGHT INCHES |
27 1/8 |
WIDTH INCHES |
18 7/8 |
DEPTH INCHES |
8 1/4 |
QTY PER PHASE |
1 |
TERMINAL RATING RANGE |
#6 - 250mcm |
Warranty |
1 Year |
Notes |
See Support Documents |
Support Documents (pdf) |
